Name: Chartpak Pickett Ellipses Templates
Brand: Chartpak
Rating: 4.8 (4 reviews)

Suitable for many drafting needs, durable Chartpak Pickett Ellipse Templates are 0.13&quot; thick and made with partially recycled plastic materials. The flexible, translucent smoke-gray templates are made in the USA. Built-in risers and smooth apertures reduce smudged lines.

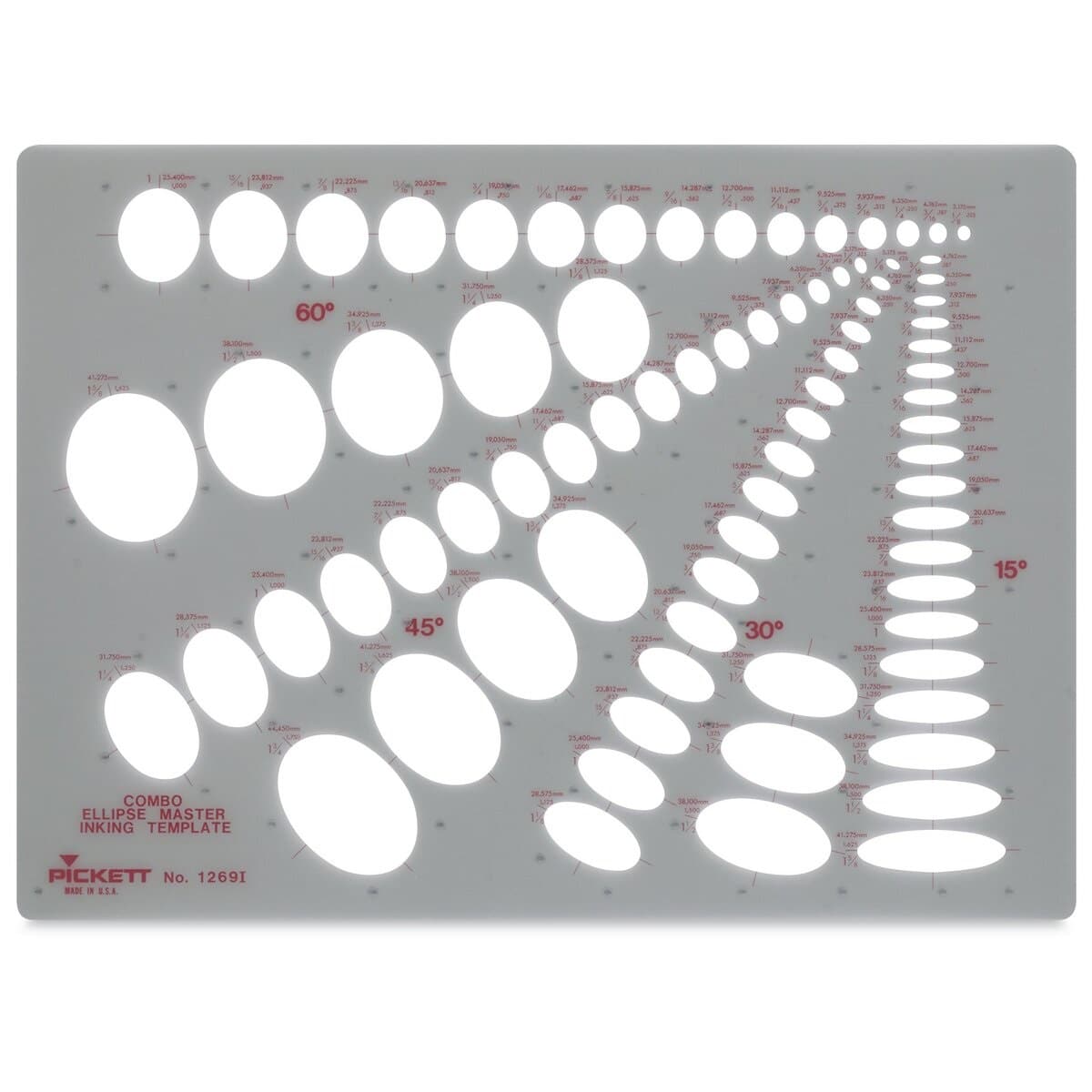

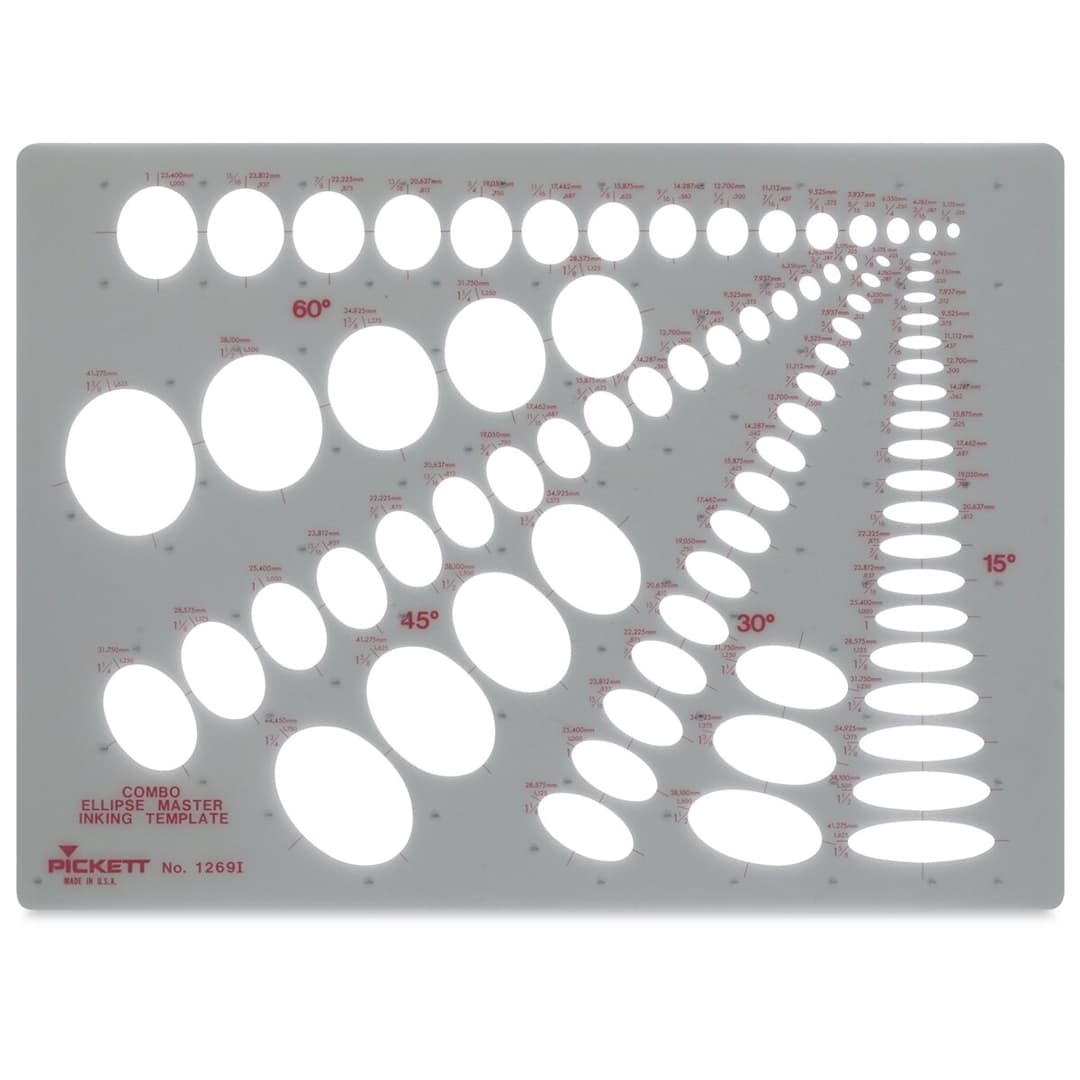

**1269i Combo Ellipse Master**  - Template includes ellipses at 15°, 30°, 45° and 60° projections in sizes ranging from 1/8" to 1-5/8".  It measures 8-3/4" × 12".

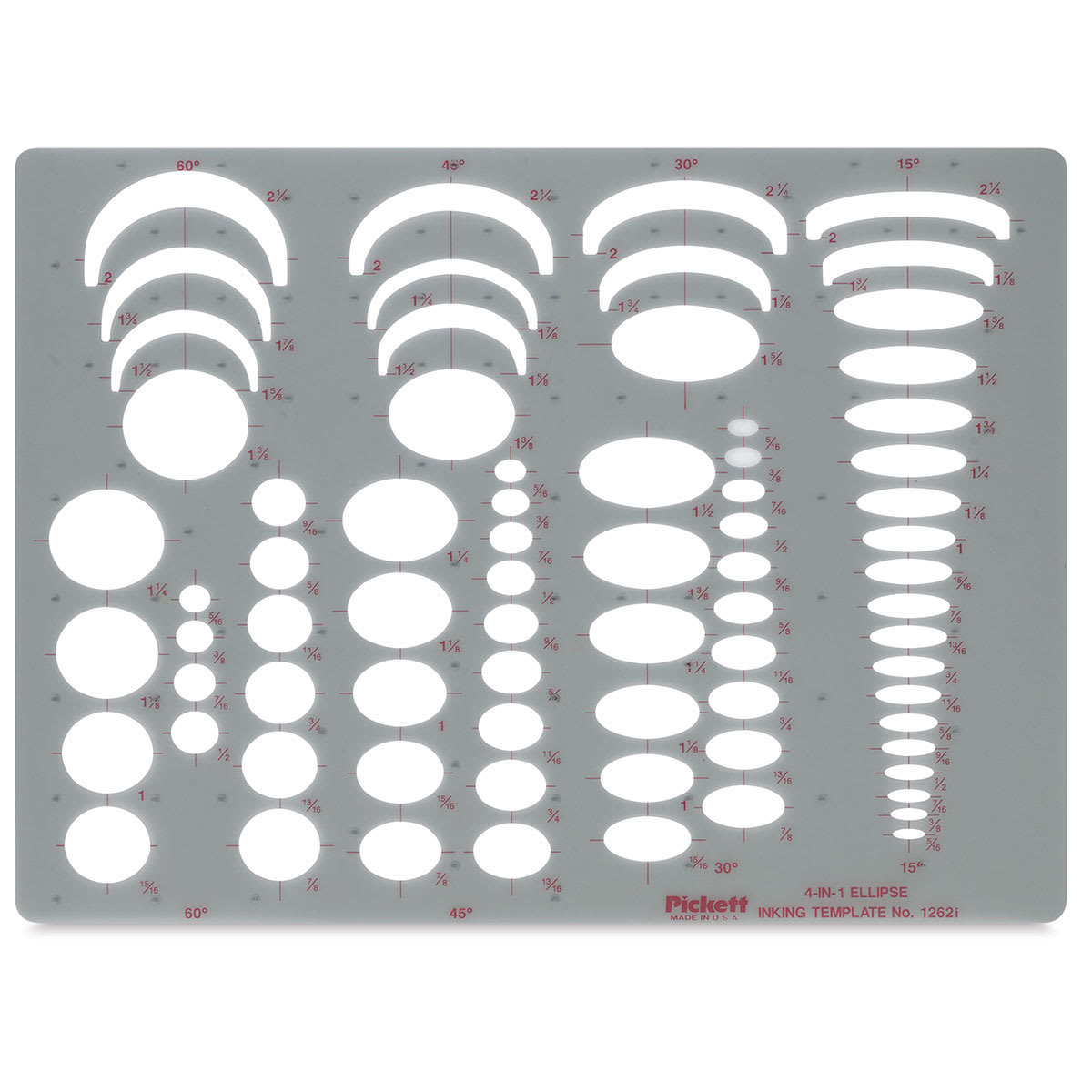

**1262i 4-in-11 Ellipse**  - Template features ellipses at 15°, 30°, 45°, and 60° projections in sizes ranging from 5/16" to 2-1/4". It measures 8-3/4" × 12".

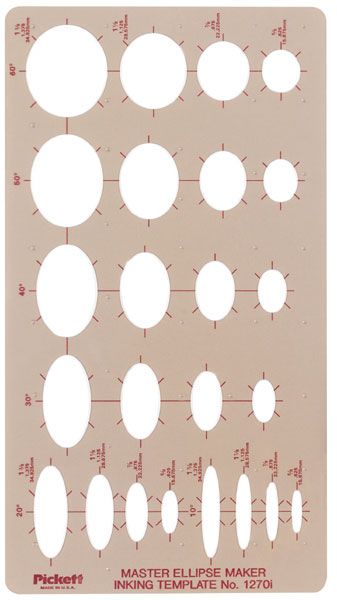

**1270i Master Ellipse Maker**  - Template features ellipses at 10°, 20°, 30°, 40°. 50°, and 60° projections. Each projection is in four sizes: 5/8", 7/8", 1-1/8", and 1-3/8". It measures 5" × 9".


**1264i Isometric Ellipse**  - Template contains ellipses of 35°16' projections in sizes ranging from 1/8" to 2". It measures 6" × 10".

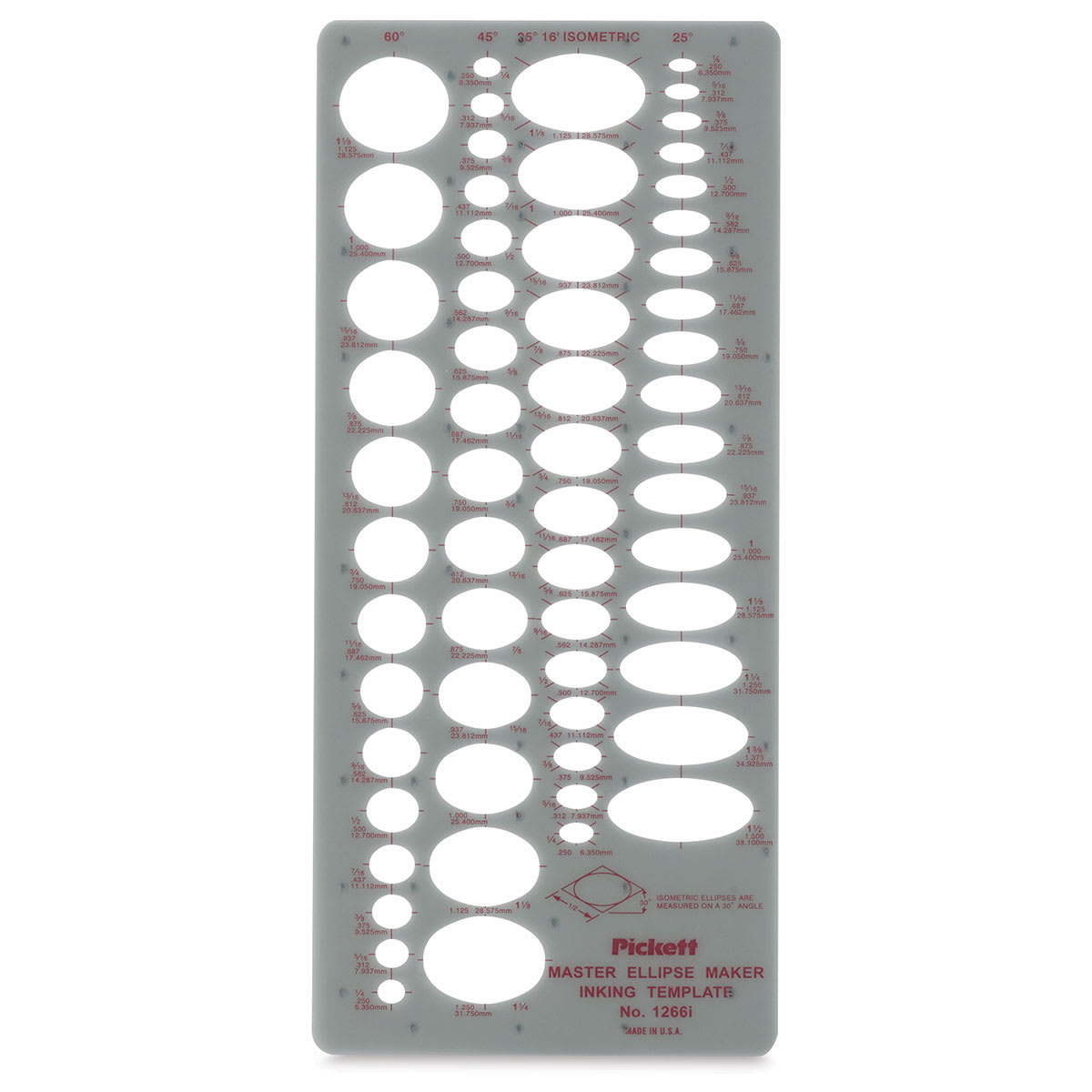

**1266i Isometric Master Ellipse**  - Template contains ellipses at 25°, 35°16', 45°, and 60° projections in sizes ranging from 1/4" to 1-1/2". It measures 5" × 11".

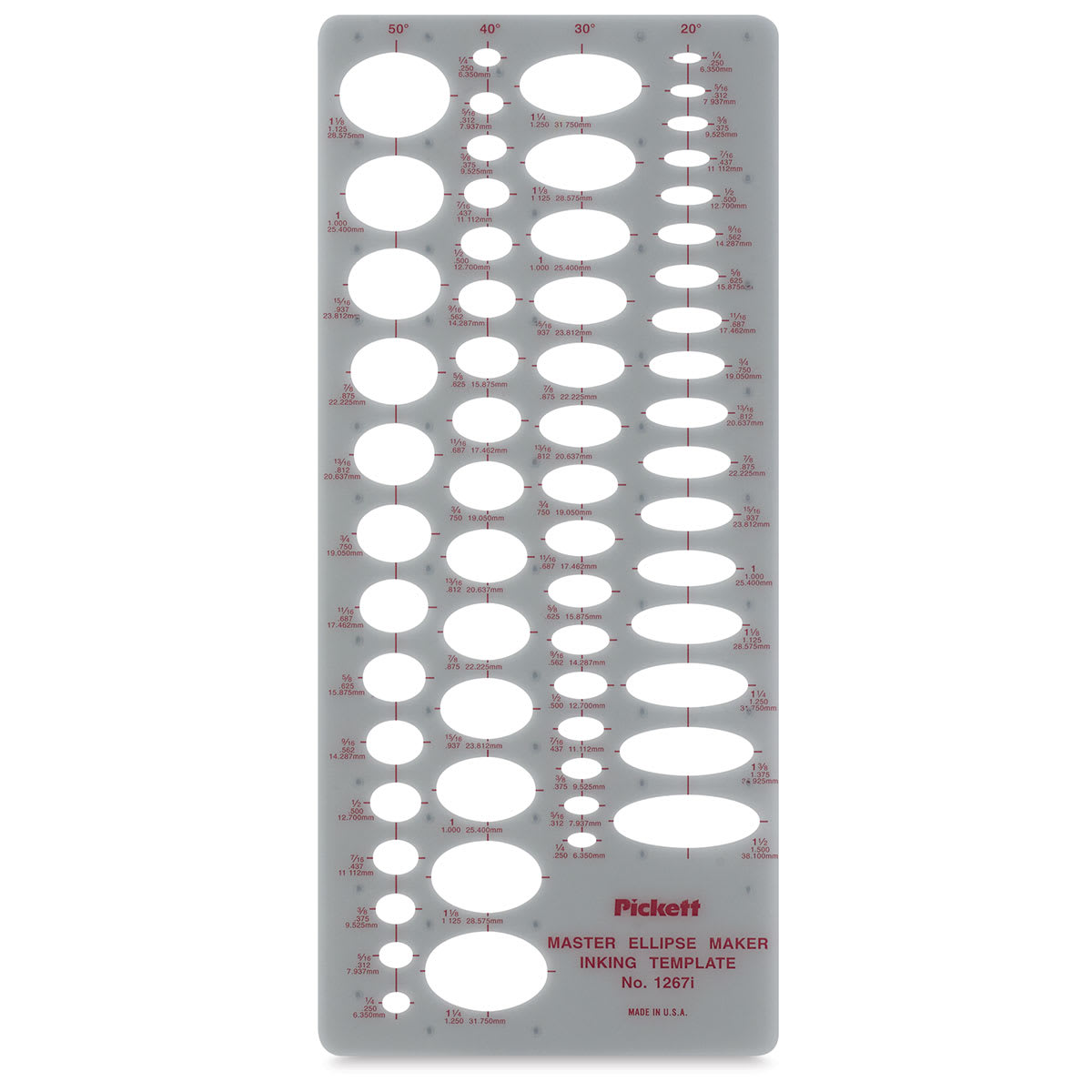

**1267i Master Ellipse Maker (20° to 50°)**  - Template includes ellipses at 20°, 30°, 40°, and 50° projections in sizes ranging from 1/4'' to 1-1/2''. It measures 5" × 11".

55476-0300-M-4ww

Chartpak Pickett Ellipses Templates - front view of Combo Ellipse Master Template


Chartpak Pickett Ellipses Templates - front view of 4-in-1 Ellipse Template


Chartpak Pickett Ellipses Templates - front view of Master Ellipse Maker Template


Chartpak Pickett Ellipses Templates - front view of Isometric Ellipse Template


Chartpak Pickett Ellipses Templates - front view of Isometric Master Ellipse Template


Chartpak Pickett Ellipses Templates - front view of Master Ellipse Maker (20 to 50 degree) Template
