Name: Chartpak Pickett Architectural Templates
Brand: Chartpak

Great for general interior design planning and drafting, durable Chartpak Pickett Architectural Templates are 0.13&quot; thick and made with partially recycled plastic materials. The flexible, translucent smoke-gray templates are made in the USA. Built-in risers and smooth apertures reduce smudged lines.   The template scale is 1/4&quot; = 1 ft (unless noted).


**1190i Duo Lavatory Planning**  - The 5" × 9" template includes symbols used in planning and designing residential, institutional, and commercial lavatories. Dimensions are in inches and centimeters.


**1155i House Furnishings**  - The 5-1/2" × 9-1/4" template includes standard home furnishings for interior design.

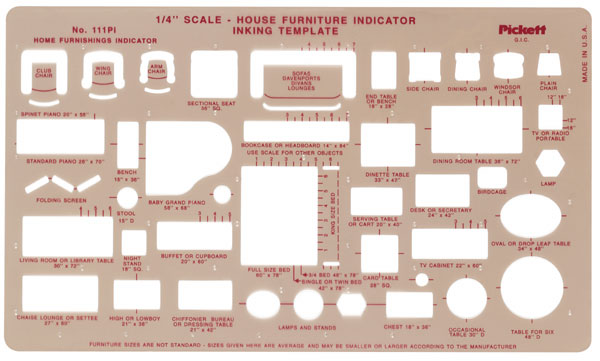

**111pi House Furniture Indicator**  - The 6" × 10" template contains standard furniture cutouts used for room planning and arrangements.


**1150i House Plan and Plumbing**  - The 5" × 7" template includes house plan and plumbing fixtures.


**1151i House Plan Fixture**  - The 8" × 10" template includes architectural symbols used in designing kitchens and bathrooms.


**1170i Lavatory Planning**  - The 6" × 9-3/4" template includes all common American Standard brand of lavatory fixtures. 1/8" and 1/4" = 1 ft scale.


**113pi Office Equipment**  - The 6" × 10" template includes standard furniture and door swings for office furniture arrangements.


**1152i Professional Builders**  - The 4" × 8" template includes architectural symbols used in designing kitchens and bathrooms. 1/8" = 1 ft scale.


**1153i House Plan**  - The 12" × 8" template includes architectural symbols used in designing kitchens and bathrooms. 1/4" = 1 ft scale.

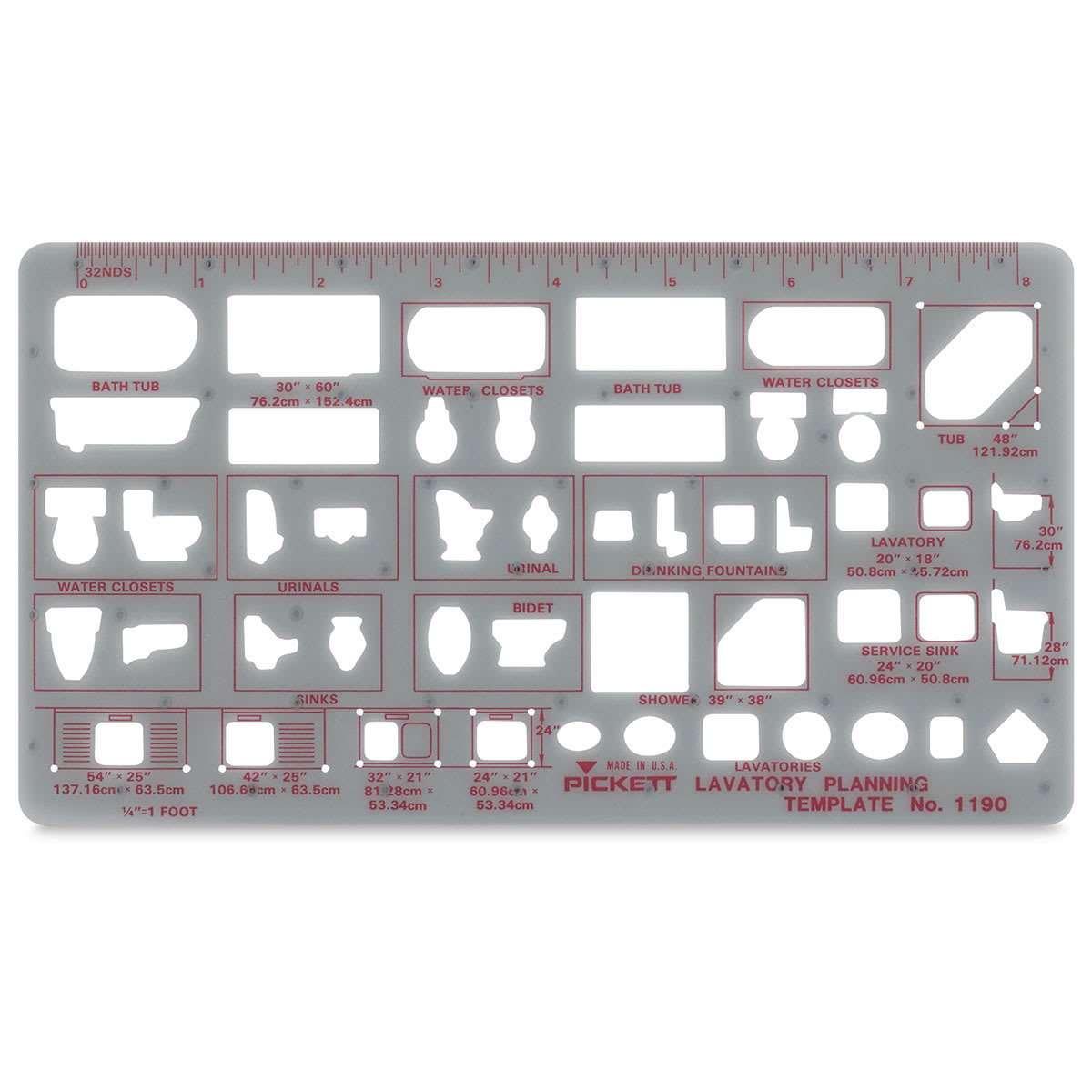

Chartpak Pickett Architectural Template for Lavatory Planning

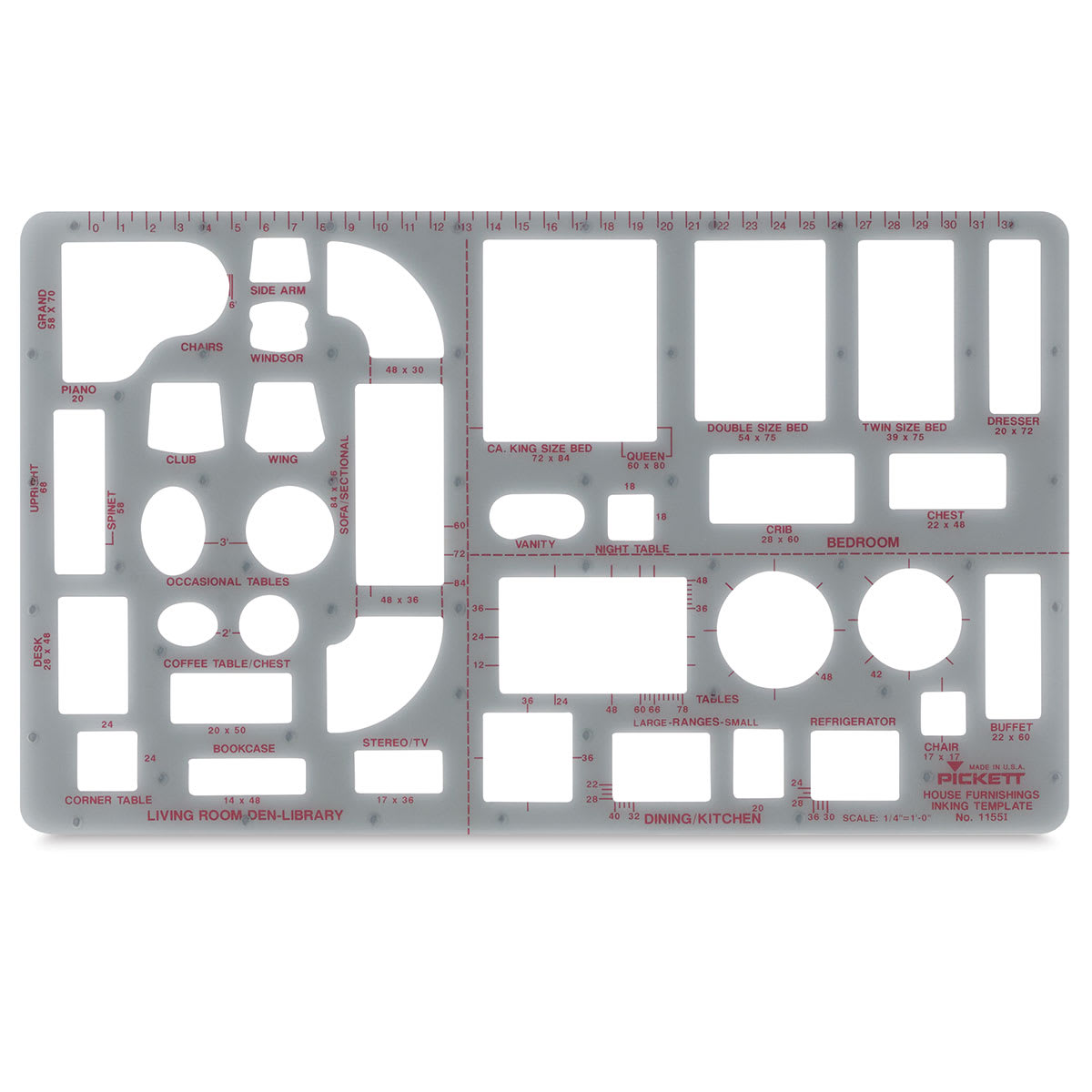

Chartpak Pickett Architectural Template for House Furnishings

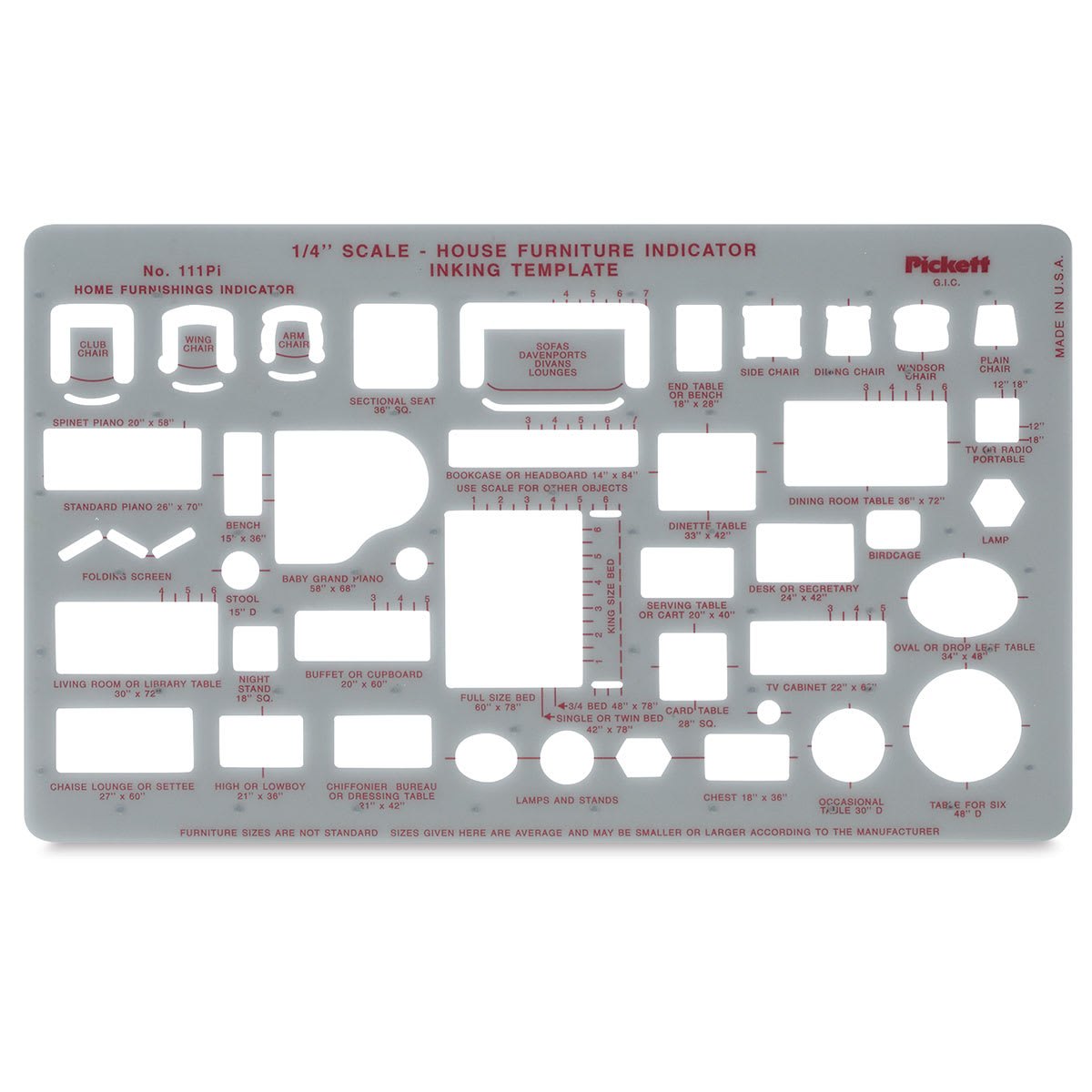

Chartpak Pickett Architectural Template for House Furniture


Chartpak Pickett Architectural Template for House and Plumbing planning


Chartpak Pickett Architectural Template for House Fixture planning


Chartpak Pickett Architectural Template - American Standard Lavatory planning


Chartpak Pickett Architectural Template for Office Equipment planning


Chartpak Pickett Architectural Template for Professional Builders


Chartpak Pickett Architectural Template - Residential house plan
