Name: Alumicolor Drafting Fan
Brand: Alumicolor
Rating: 4 (1 reviews)

The Alumicolor Drafting Fan is a convenient all-in-one tool featuring standard architectural, engineering, and metric scales.

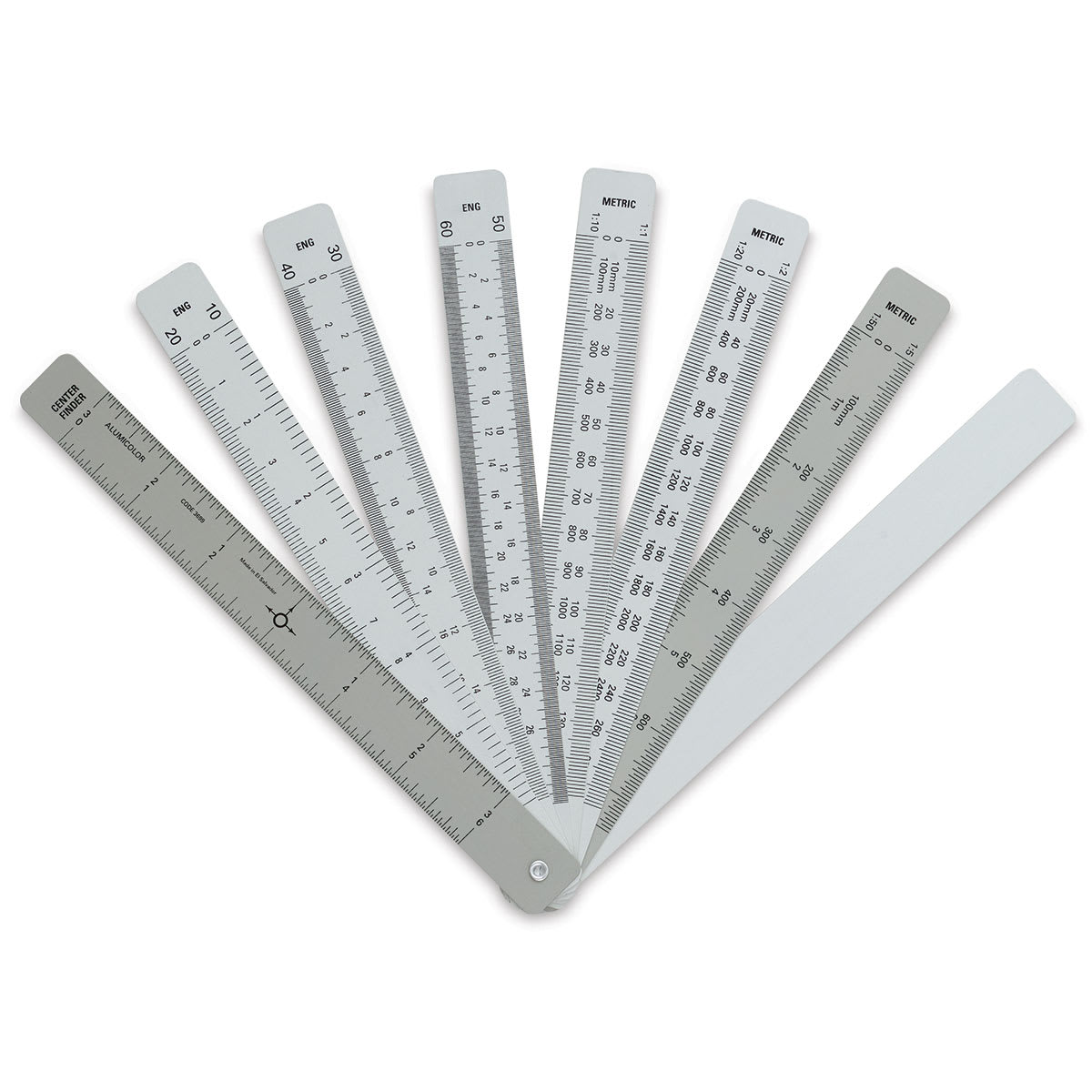

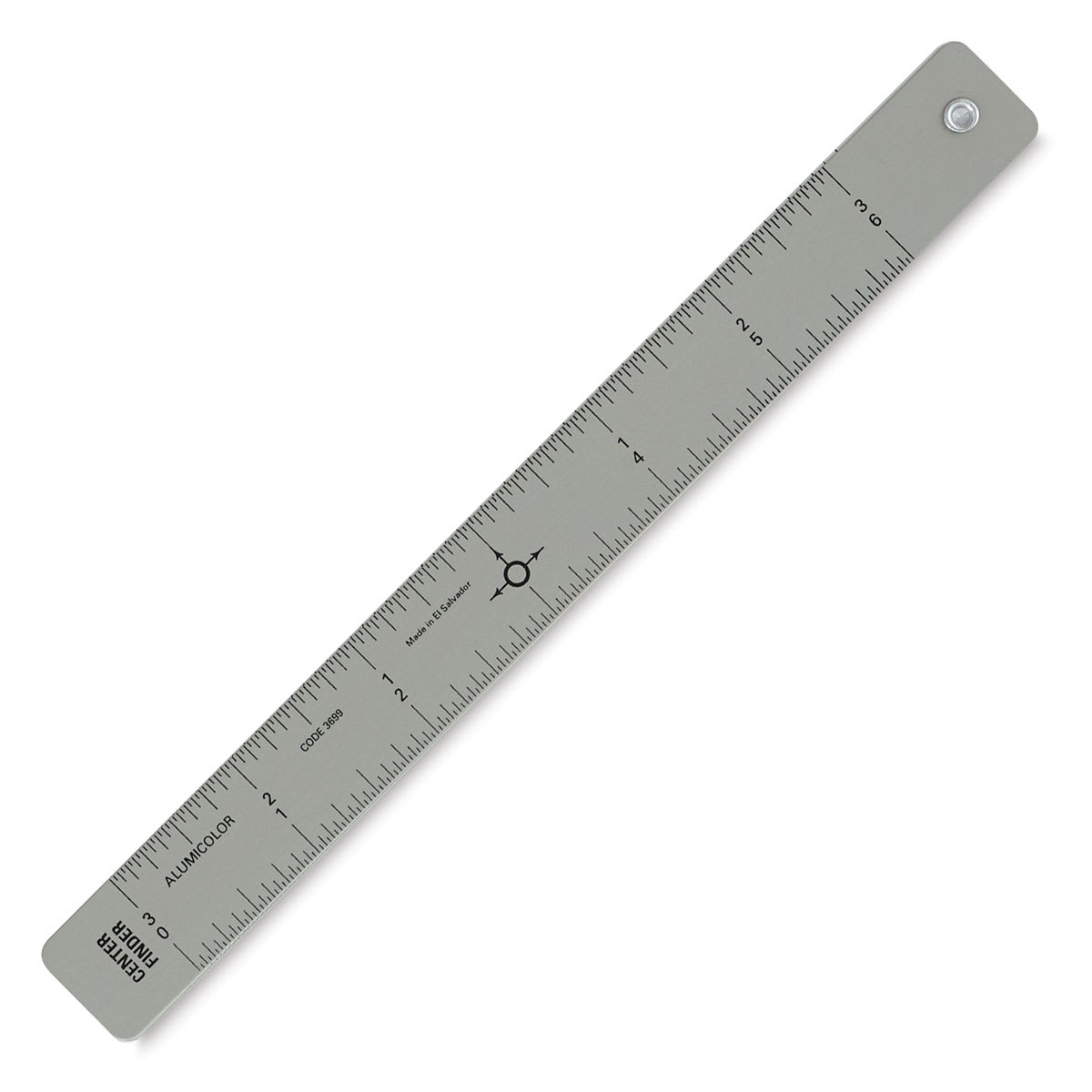

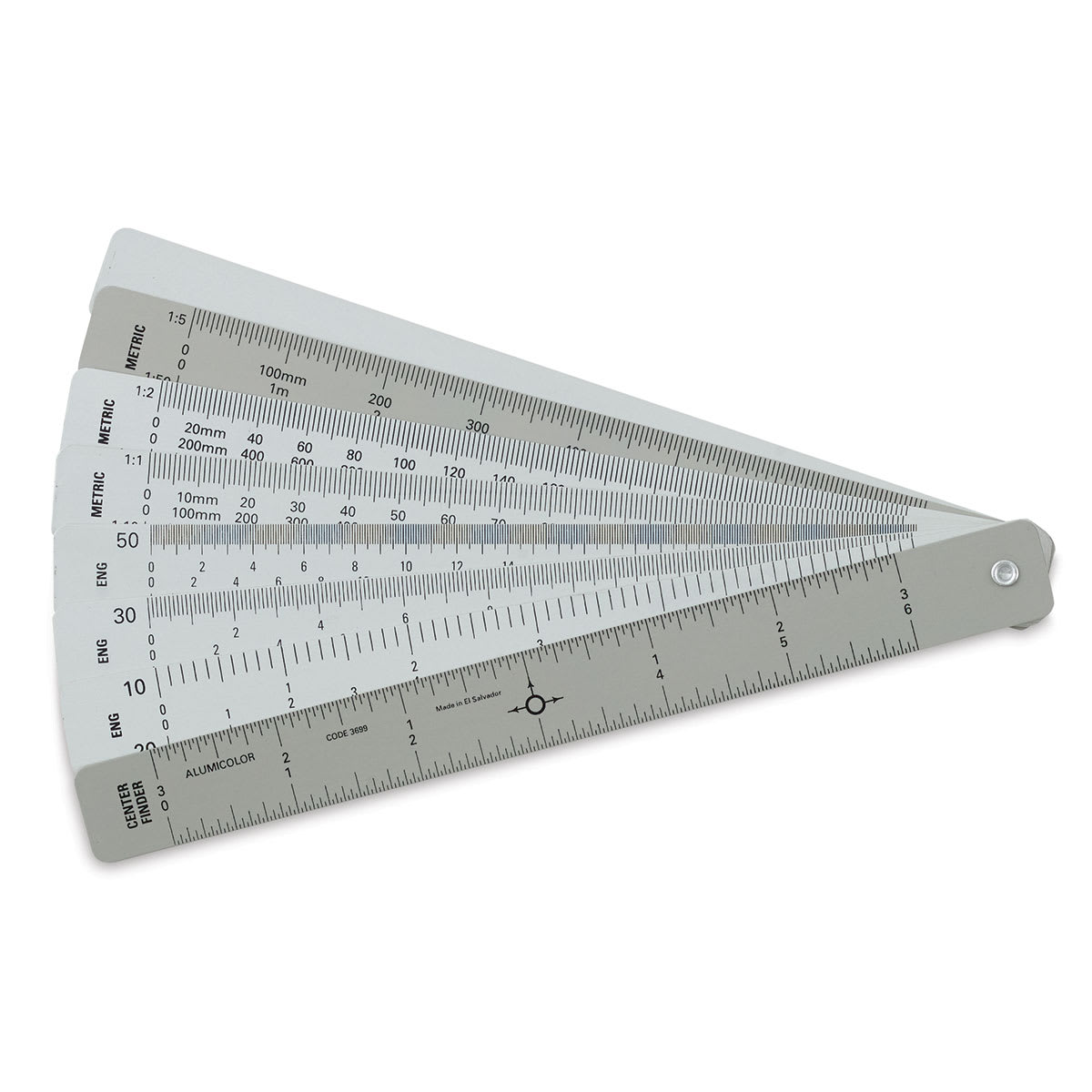

Eight blades of aluminum sheet are riveted together, creating a compact and versatile measuring tool. One of the blades includes a regular ruler and a center finding ruler. The other blades feature the following calibrations:

Architectural — 1/32, 1/16, 3/32, 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, 1, 1-1/2, 3
Engineering — 10, 20, 30, 40, 50, 60
Metric — 1:1, 1:2, 1:5, 1:10, 1:20, 1:50







The Alumicolor Drafting Fan is a convenient all-in-one tool featuring standard architectural, engineering, and metric scales. It also includes a regular ruler and a center finding ruler. Eight blades of aluminum sheet are riveted together, creating a compact and versatile measuring tool.
