Hann Split-Top Drafting Tables

Hann

Open full size selected image in new window

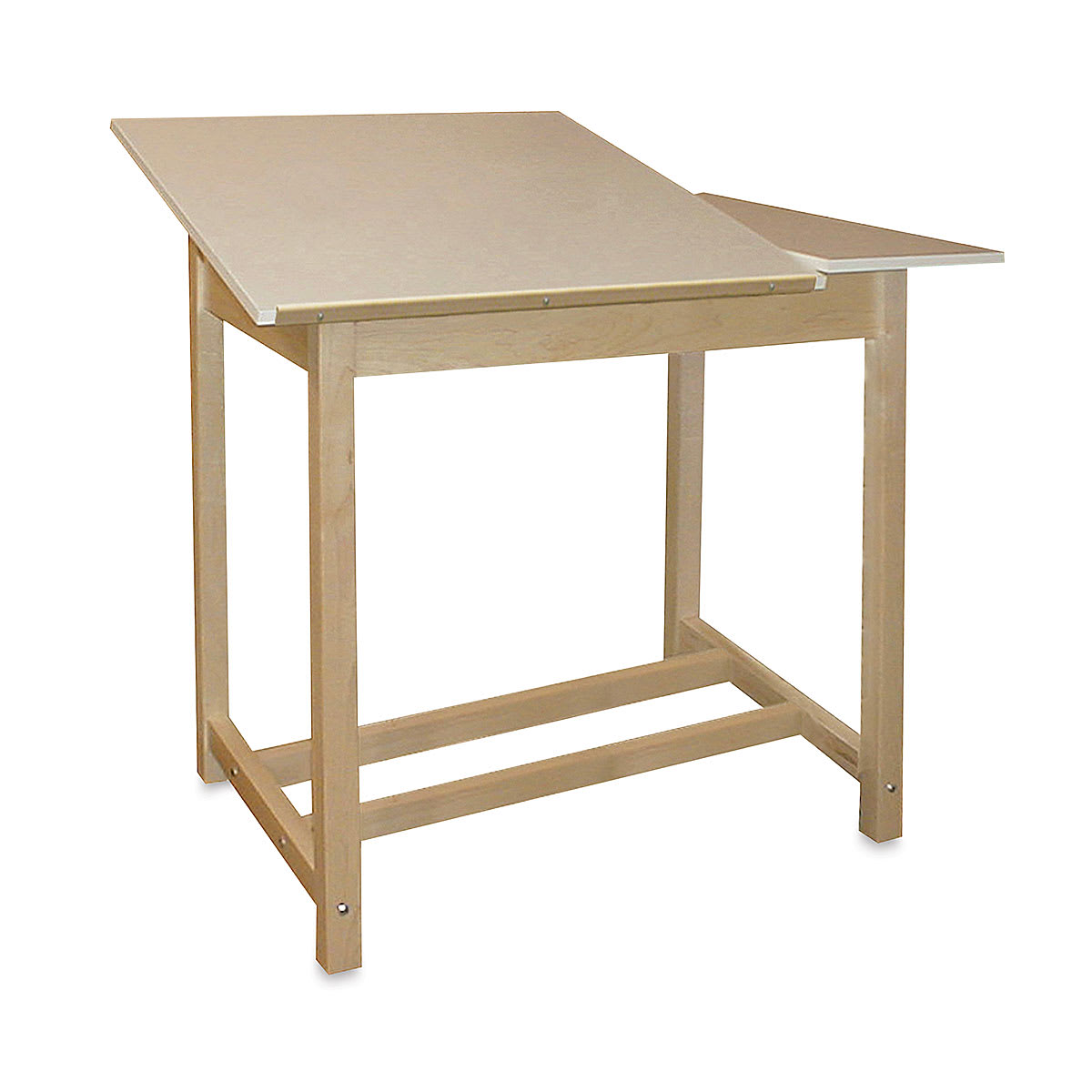

Hann Split-Top Drafting Table - left angle view showing split top in drafting position
  • Robust tables for classrooms, studios, and professional settings
  • Dual-section top includes a tilting section and a fixed reference section
  • Full-width pencil ledge standard on all models
  • Durable, solid maple construction with a natural finish

Crafted for durability and functionalit...

™ Hann is a trademark.

Item Specs

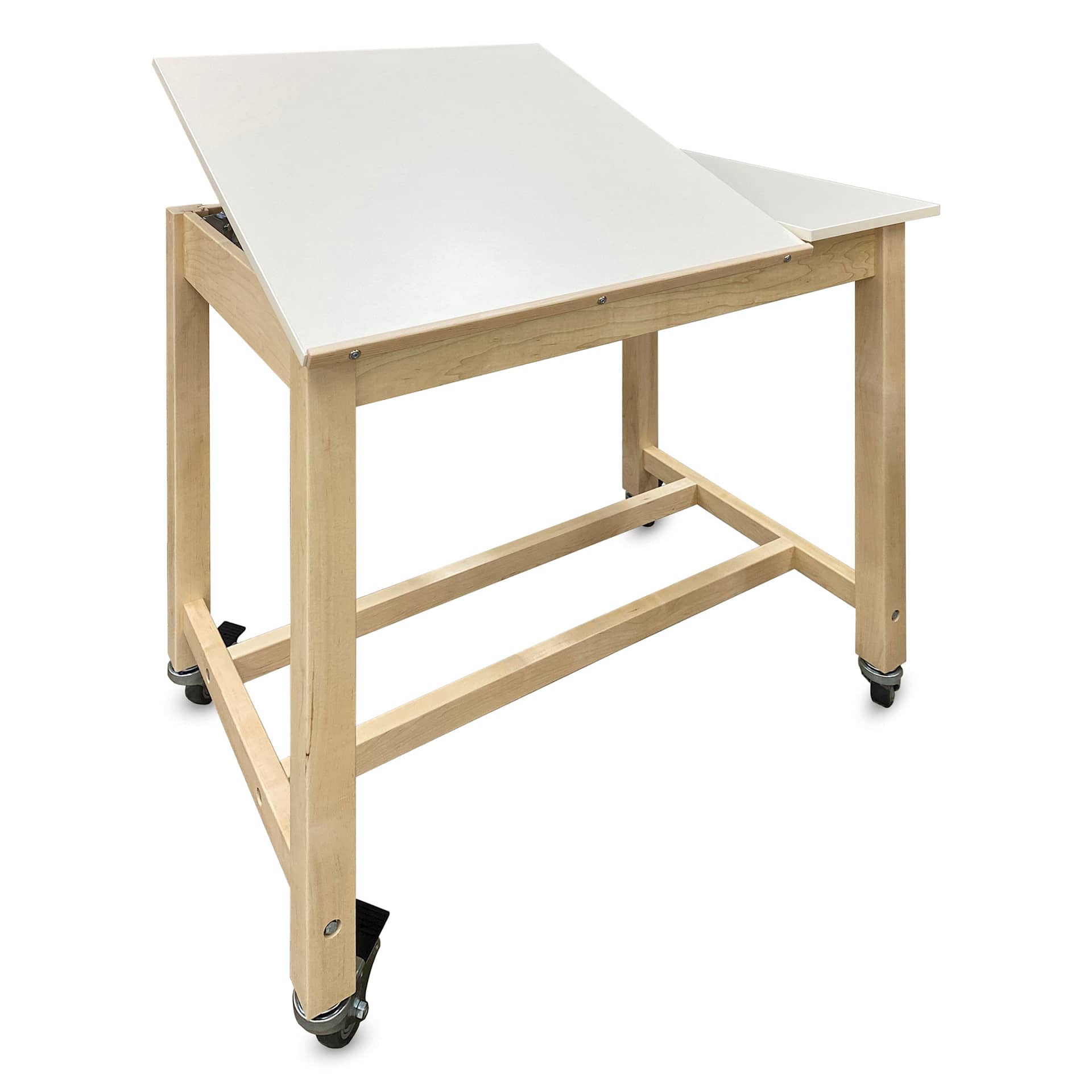

WD-60 & WD-60-C Split-Top Table

Overall Dimensions
Width (Table Top)42”106.68 cm
Depth (Table Top)30"76.2 cm
Height39"99.06 cm
Fixed Portion of Table12"L x 30"D30.48 cm x 76.2 cm
Tilted Portion of Table30"L x 30"D76.2 cm x 76.2 cm
Adjustment Angle (Table Top)0-25°
Weight110 lbs50 kg

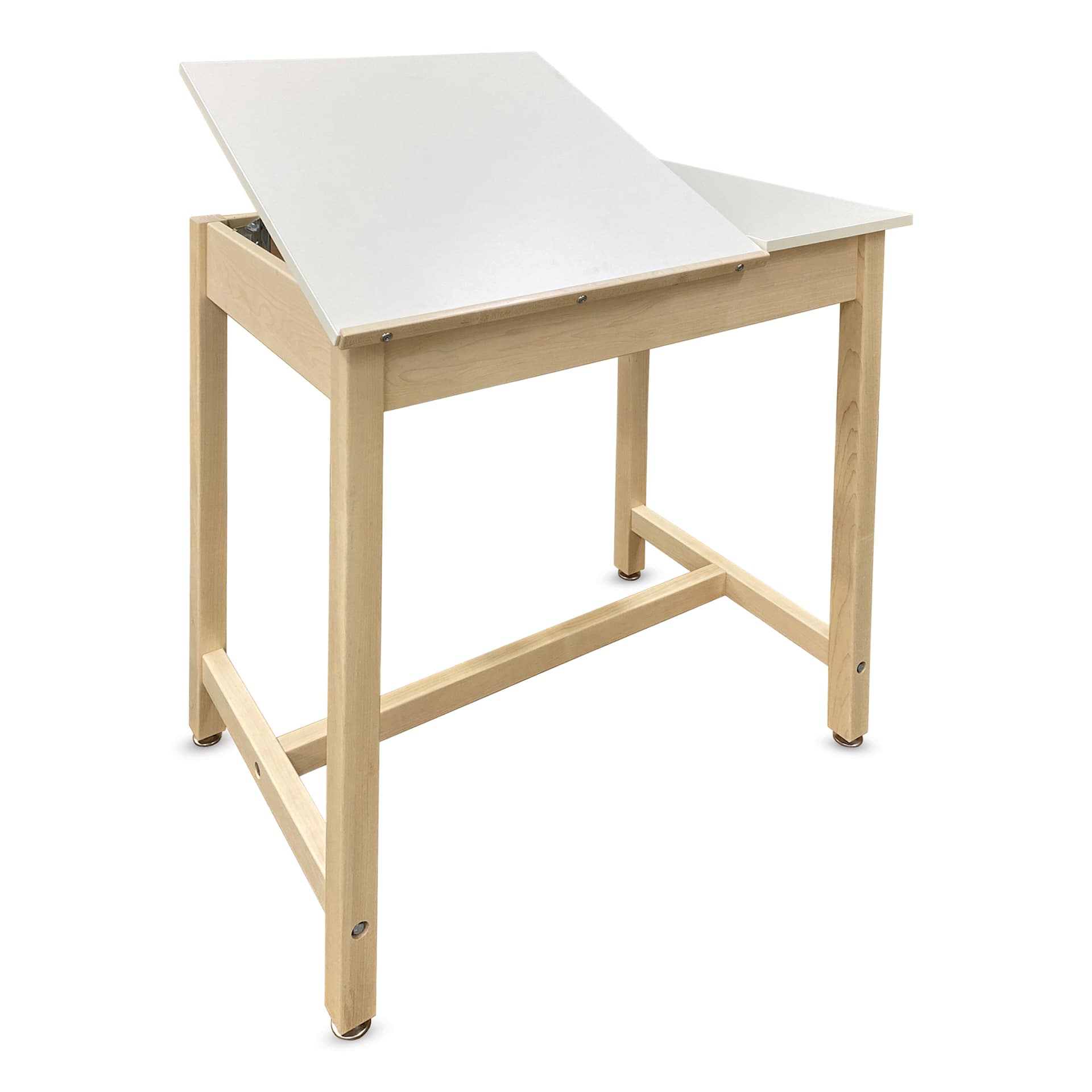

WD-10 Split-Top Table

Overall Dimensions
Width (Table Top)36”91.44 cm
Depth (Table Top)24"60.96 cm
Height37"93.98 cm
Fixed Portion of Table12"L x 24"D30.48 cm x 60.96 cm
Tilted Portion of Table24" L x 24" D60.96 cm x 60.96 cm
Adjustment Angle (Table Top)0-25°


WD-3 Split-Top Table

Overall Dimensions
Width (Table Top)36”91.44 cm
Depth (Table Top)24"60.96 cm
Height37"93.98 cm
Fixed Portion of Table12"L x 24"D30.48 cm x 60.96 cm
Tilted Portion of Table24" L x 24" D60.96 cm x 60.96 cm
Adjustment Angle (Table Top)0-25°
