Chartpak Rapidesign Architectural Template - ABC, 1/4"

5 out of 5 stars
5.0
Item #:55723-1014
View Product Details
Chartpak Rapidesign Architectural Template - ABC, 1/4"

Save For Later

  • My Wish Lists

  • My BlickU List(s)

  • My Quick Quotes

Product Details

Description:
Rapidesign ABC Architectural Template
Size:
1/4" = 1 ft
Mfg #:
R22
R-22

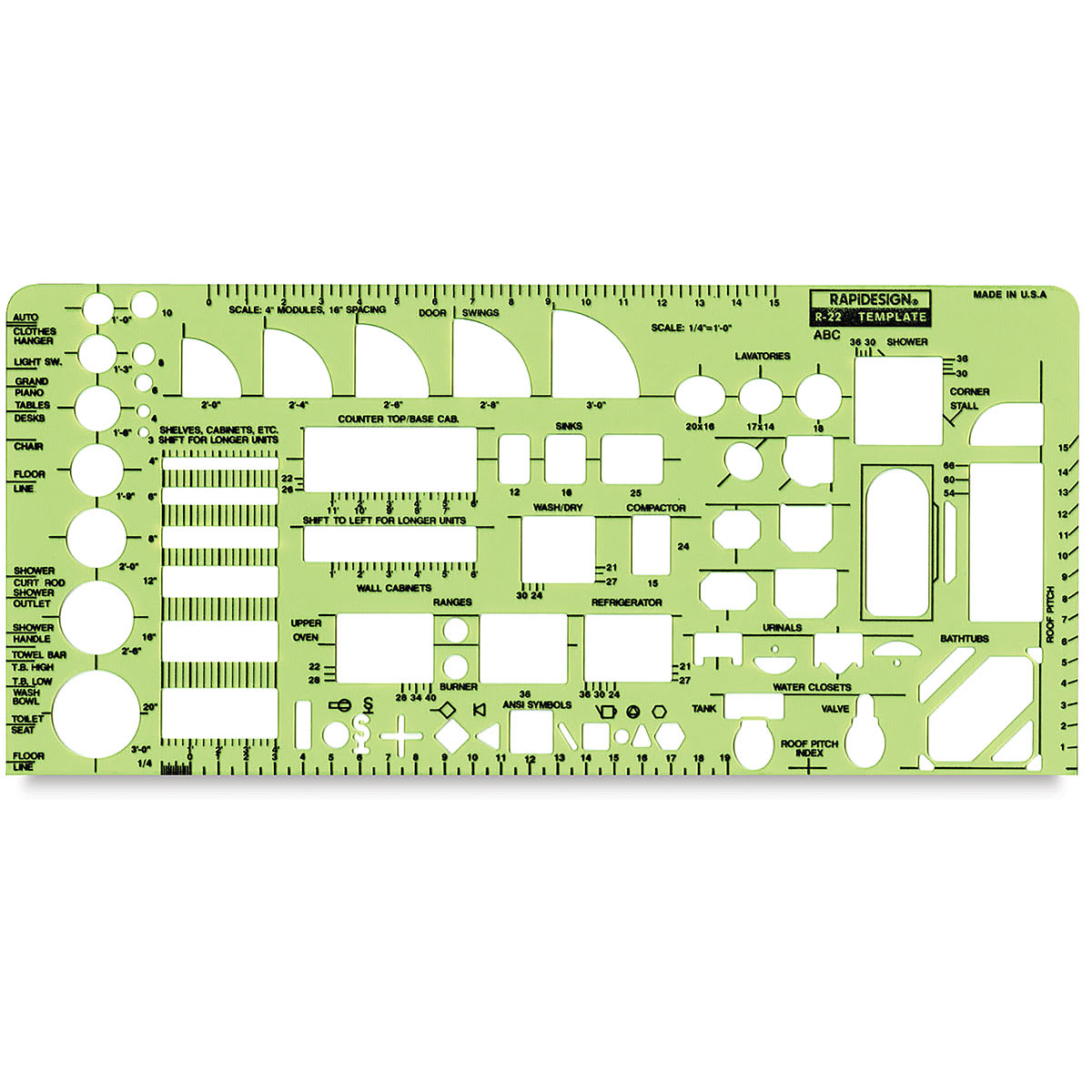

This template contains symbols most used by professionals, including door swings, kitchen and lavatory fixtures, ANSI symbols, circles, floor elevation indicator, roof pitch index, and a 16" O.C. spacing edge. The template's scale is 1/4" = 1 ft. It measures 4-3/8" × 9-1/2" × 0.030" (11 cm × 24 cm × 0.7 mm).

Reviews

UPC Code: 014173252999

ASIN #: B0039ZI5IM
