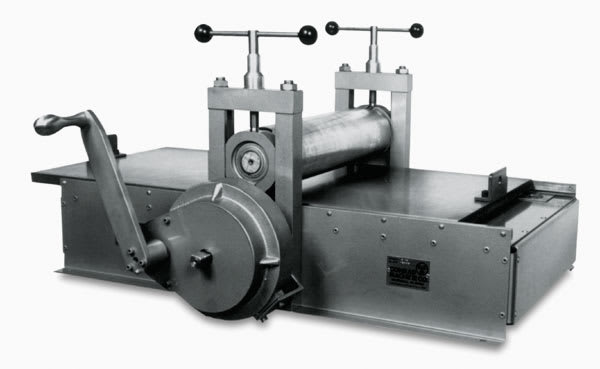

Conrad E18 Etching Press

Name: Conrad E18 Etching Press
Brand: Conrad
SKU: 4583

Description

Shipping

Photos

Reviews

These small, ruggedly built professional presses, backed by a 25-year manufacturer's warranty, can withstand the rigors of classroom use in printing etchings, woodcuts, collagraphs, and monoprints. Conrad presses have many of the same design elements as much larger presses.

Conrad presses resist twisting and tipping because of their base construction. It is a 16-gauge electrogalvanized sheet riveted together to form a sturdy box section extending to the full length at the bed plate.

For strength with minimum weight, the vertical frame is constructed of 1¼" (32 mm) square section high tensile aluminum. Height adjustment is maintained via a spring counter-balanced upper roll.

E18 Standard Press — Conrad's E18 Press has a planetary reduction drive to provide smooth and easy operation under the heaviest pressure. The torque from the 10" (254 mm) throw aluminum hand crank is multiplied in the totally enclosed geared planetary reducer by a 6:1 ratio. Other features of the E18 Press include ...

Large counterbalanced upper roll, 4½" diameter
18¾" W × 36" L × ½" thick Benelex high density lignin-resin laminate bed plate
Shipping weight, 297 lbs

Micrometer Gauge — Conrad presses are available with an optional micrometer gauge. It allows you to adjust each pressure screw by as little as .005" (about the thickness of a human hair) per line. If you want precision, the micrometer gauge delivers it.
