Hann Dual Station Drafting Table

click image to zoom in

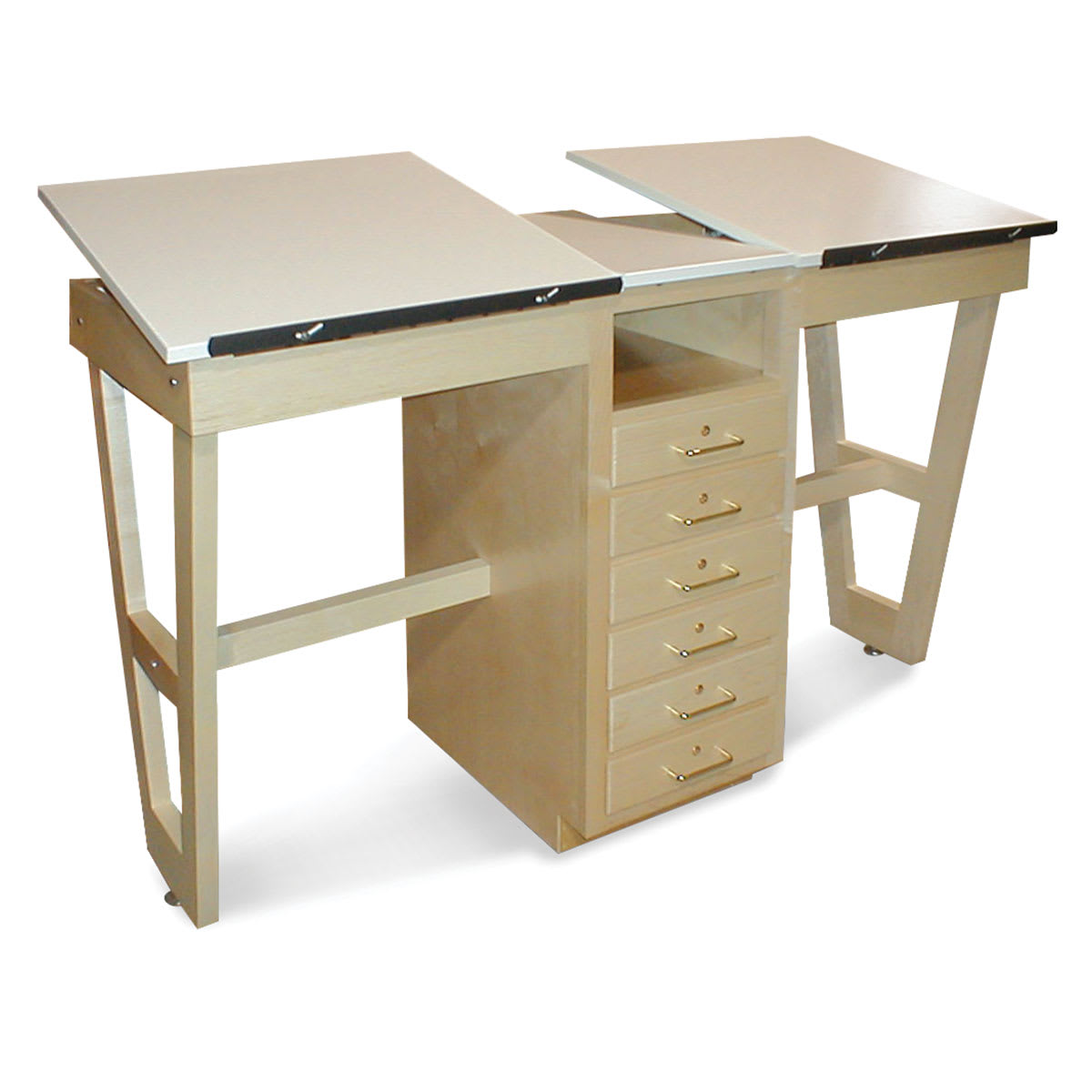

A-Frame
A-Frame
Current price:
Original price:

Hann Dual Station Drafting Tables make it easy for two artists or students to work simultaneously. The workstations feature two desk areas with tilting adjustable tops, so users can adjust each surface to suit their specific needs. These tables are great for drawing, drafting, and art making in a classroom or studio. The tabletops are made of 3/4" thick Fiberesin, which provides a hard, flat, smooth work surface. The adjustable tabletops tilt with a ratchet-type mechanism, and each drawing surface has a pencil ledge. In the center section, six lockable drawers fitted with master-keyed cylinder locks offer secure storage. Made in the USA, Hann Dual Station Drafting Tables are handcrafted one at a time by skilled craftspeople. They're made of North American hard maple for strength and durability. Built to last, the desks feature full face-frame construction, and their face frames are constructed with mortise-and-tenon joints. The tables ship fully assembled only the drawer handles need to be attached. The heavy-duty drafting tables have a natural finish and are available with A-Frame or H-Frame legs.

Item Specs

™ Hann is a trademark.

Item Specs

A-Frame
Overall Dimensions
Depth (Table Top) 24" 60.96 cm
Width (Table Top) 60" 152.4 cm
Height 36" 91.44 cm
Adjustment Angle (Table Top) 0-20°
Weight 270 lbs 122.5 kg
Reference Drawer
Width 11" 27.9 cm
Depth 19.5" 49.5 cm
Height 2.25" 5.7 cm
Tilt Top Portion
Width 24" 60.9 cm
Depth 24" 60.9 cm
Stationary Table Portion
Width 12" 38.5 cm
Depth 24" 60.9 cm

Reviews

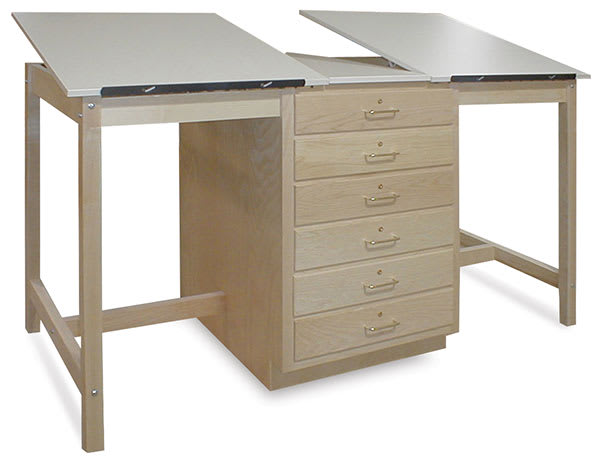

H-Frame
Overall Dimensions
Depth (Table Top) 32" 81.2 cm
Width (Table Top) 70" 177.8 cm
Height 39.75" 100.965 cm
Adjustment Angle (Table Top) 0-20°
Weight 345 lbs 156.5 kg
Reference Drawer
Depth 26.125" 66.3575 cm
Width 18.375" 46.6725 cm
Tilt Top Portion
Width 29" 73.6 cm
Depth 32" 81 cm
Stationary Table Portion
Width 12" 38.5 cm
Depth 32" 81 cm
Knee Space
Width 19.375" 49.2 cm
