Name: Amaco Excel 22 Deep Select Fire Kilns
Brand: Amaco

Excel's new series of Excel 22&quot; Deep Select Fire Kilns was designed to make loading and unloading easier for younger students and potters who are shorter in stature.


Measuring 4" deeper than other models, the kilns are still easy to access, available in a variety of chamber sizes, and able to fire pieces up to 18" tall.


What's more, their Cone 10 capability (excludes the  EX-381 Single Fire , 208V model) allows maximum flexibility for firing low-fire and high-fire pieces.


Standard features of the Excel 22" Deep Select Fire Kilns include:

- Select Fire computer controller
- EZ-Lift  spring-assisted  lid (Models EX-257, EX-353, and EX-381 only
- Stainless steel construction
- Modular design
- Reversible slabs
- High-quality Kanthal A-1 elements
- 7ft, 50amp power cord with NEMA  6-50  or  15-50  plug
- Corrosion-resistant lug connectors
- Steel stand with  no-mar  rubber feet
- Modular design that allows the kiln to be quickly disassembled for easy element or brick replacement or moving through narrow openings


**EX-232SF, 208V, 1P, 36"H x 29"W x 22 1/2"D**  - Available in 240V or 208V, the exterior of the EX-232 measures 36"H × 29"W × 22½"D. Its interior dimensions are 22"D × 17½"Dia, with a firing chamber area that measures 3.2 cu ft. It fires up to Cone 10 (2381°F). The EX-232 weighs 155 lb. It does not include the EZ-Lift feature.


**EX-232SF, 240V, 1P, 36"H x 29"W x 22 1/2"D**  - Available in 240V or 208V, the exterior of the EX-232 measures 36"H × 29"W × 22½"D. Its interior dimensions are 22"D × 17½"Dia, with a firing chamber area that measures 3.2 cu ft. It fires up to Cone 10 (2381°F). The EX-232 weighs 155 lb. It does not include the EZ-Lift feature.


**EX-329SF, 208V, 1P, 36"H x 29"W x 22 1/2"D**  - Available in 240V or 208V, the exterior of the EX-329 measures 36"H × 29"W × 22&frac12:"D. Its interior dimensions are 22"D × 16½"Dia, with a firing chamber area that measures 2.9 cu ft. It fires up to Cone 10 (2381°F). The EX-329 weighs 180 lb. It does not include the EZ-Lift feature.


**EX-329SF, 240V, 1P, 36"H x 29"W x 22 1/2"D**  - Available in 240V or 208V, the exterior of the EX-329 measures 36"H × 29"W × 22&frac12:"D. Its interior dimensions are 22"D × 16½"Dia, with a firing chamber area that measures 2.9 cu ft. It fires up to Cone 10 (2381°F). The EX-329 weighs 180 lb. It does not include the EZ-Lift feature.


**EX-257SF, 208V, 1P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-257 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 23½"Dia, with a firing chamber area that measures 5.7 cu ft. It fires up to Cone 10 (2381°F). The EX-257 weighs 265 lb.


**EX-257SF, 240V, 1P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-257 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 23½"Dia, with a firing chamber area that measures 5.7 cu ft. It fires up to Cone 10 (2381°F). The EX-257 weighs 265 lb.


**EX-257SF, 208V, 3P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-257 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 23½"Dia, with a firing chamber area that measures 5.7 cu ft. It fires up to Cone 10 (2381°F). The EX-257 weighs 265 lb.


**EX-257SF, 240V, 3P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-257 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 23½"Dia, with a firing chamber area that measures 5.7 cu ft. It fires up to Cone 10 (2381°F). The EX-257 weighs 265 lb.


**EX-353SF, 208V, 1P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 22½"Dia, with a firing chamber area that measures 5.25 cu ft. It fires up to Cone 10 (2381°F). The EX-353 weighs 265 lb.


**EX-353SF, 240V, 1P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 22½"Dia, with a firing chamber area that measures 5.25 cu ft. It fires up to Cone 10 (2381°F). The EX-353 weighs 265 lb.


**EX-353SF, 208V, 3P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 22½"Dia, with a firing chamber area that measures 5.25 cu ft. It fires up to Cone 10 (2381°F). The EX-353 weighs 265 lb.


**EX-353SF, 240V, 3P, 36"H x 35"W x 28 1/2"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 35"W × 28½"D. Its interior dimensions are 22"D × 22½"Dia, with a firing chamber area that measures 5.25 cu ft. It fires up to Cone 10 (2381°F). The EX-353 weighs 265 lb.


**EX-381SF, 208V, 1P, 36"H x 40 1/2"W x 34"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 40½"W × 34"D. Its interior dimensions are 22"D × 28"Dia, with a firing chamber area that measures 8.1 cu ft. The 240V Single Phase and 208V Three Phase models fire up to Cone 10 (2381°F). The 208V Single Phase model fires up to Cone 8 (2320°F). The EX-381 weighs 335 lb.


**EX-381SF, 240V, 1P, 36"H x 40 1/2"W x 34"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 40½"W × 34"D. Its interior dimensions are 22"D × 28"Dia, with a firing chamber area that measures 8.1 cu ft. The 240V Single Phase and 208V Three Phase models fire up to Cone 10 (2381°F). The 208V Single Phase model fires up to Cone 8 (2320°F). The EX-381 weighs 335 lb.


**EX-381SF, 208V, 3P, 36"H x 40 1/2"W x 34"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 40½"W × 34"D. Its interior dimensions are 22"D × 28"Dia, with a firing chamber area that measures 8.1 cu ft. The 240V Single Phase and 208V Three Phase models fire up to Cone 10 (2381°F). The 208V Single Phase model fires up to Cone 8 (2320°F). The EX-381 weighs 335 lb.


**EX-381SF, 240V, 3P, 36"H x 40 1/2"W x 34"D**  - Available in 240V or 208V, and in Single Phase or Three Phase models, the exterior of the EX-353 measures 36"H × 40½"W × 34"D. Its interior dimensions are 22"D × 28"Dia, with a firing chamber area that measures 8.1 cu ft. The 240V Single Phase and 208V Three Phase models fire up to Cone 10 (2381°F). The 208V Single Phase model fires up to Cone 8 (2320°F). The EX-381 weighs 335 lb.

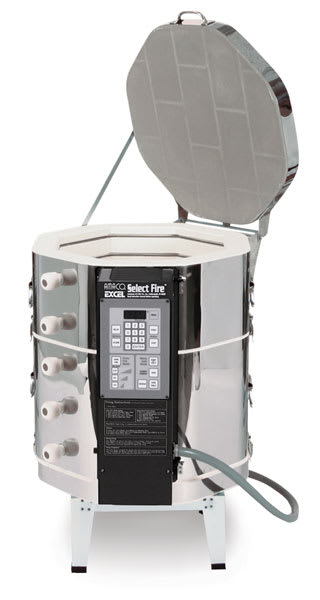

Amaco Excel 22" Deep Select Fire Kilns - Single Phase Kiln without EZ Lift feature


Amaco Excel 22" Deep Select Fire Kilns - Single Phase Kiln with EZ Lift

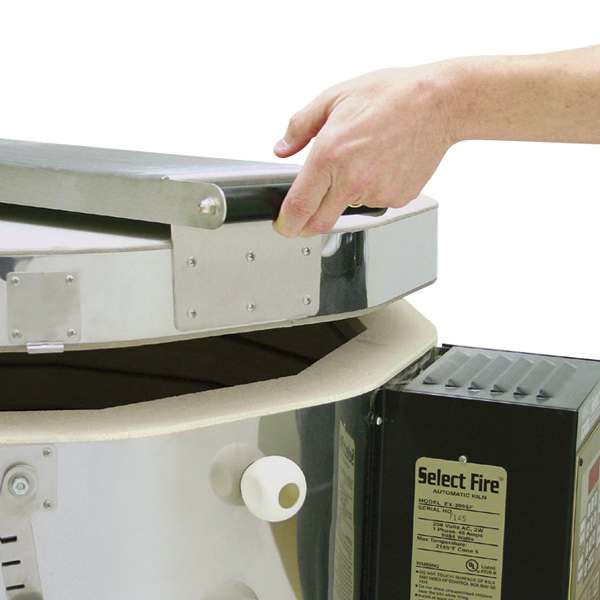

Amaco Excel 22" Deep Select Fire Kilns - Closeup of Hand raising EZ Lift Lid \

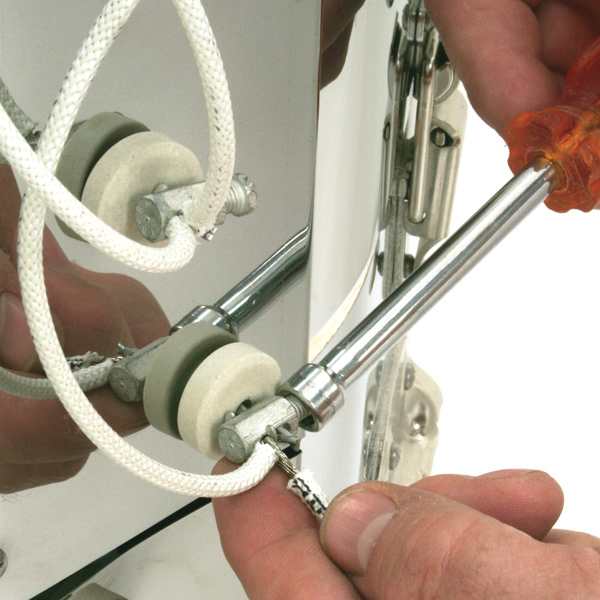

Amaco Excel 22" Deep Select Fire Kilns - Closeup of hands showing lug connectors

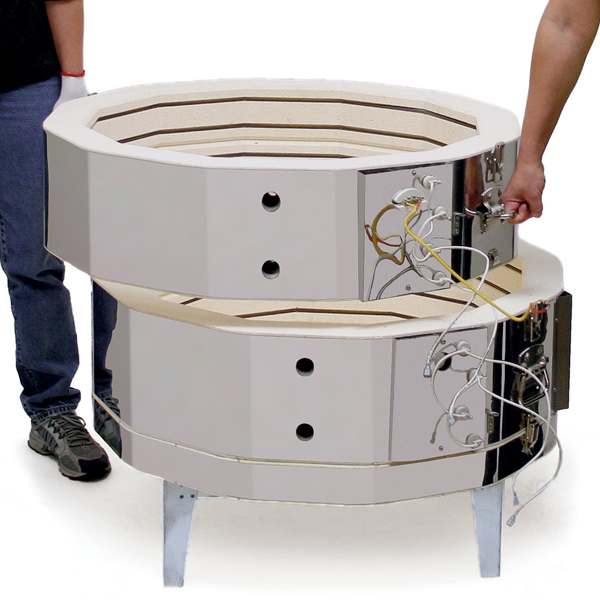

Amaco Excel 22" Deep Select Fire Kilns - Two men assembling sections of kiln

AMACO

AMACO Logo 08-white


The most advanced kiln control system ever is now available built-in the Excel Kilns. You can set the kiln to fire by temperature or by cone number (automatically converts one to the other) at one of three pre-set firing programs - slow, medium, or fast.

Excel's new series of Excel 22" Deep Select Fire Kilns was designed to make loading and unloading easier for younger students and potters who are shorter in stature. Measuring 4" deeper than other models, the kilns are still easy to access, and available in a variety of chamber sizes.

Amaco Excel 22" Deep Select Fire Kilns | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln - EX-232SF, 208V, 1P, 36"H x 29"W x 22 1/2"D at Blick. Find everything you need for your next creative project online.

Additional charges for a truck shipment vary depending on distance, season, weight, bulk, etc. Carriers establish their own rates for delivery, so our shipping department chooses the best carrier on the basis of service, price, and availability.

Truck Shipments

Items shipped directly from the factory, which are noted as Freight-On-Board (FOB), are billed an additional cost for shipping and handling. FOB shipping charges may depend on destination as well as weight. Please allow additional time for delivery.

Drop Ship

Items shipped directly from the factory, which are noted as Freight-On-Board (FOB), are billed an additional cost for shipping and handling. FOB shipping charges may depend on destination as well as weight. Please allow additional time for delivery.


Excel 22" Deep Single Phase Kiln - EX-232SF, 208V, 1P, 36"H x 29"W x 22 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln - EX-232SF, 240V, 1P, 36"H x 29"W x 22 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln - EX-232SF, 240V, 1P, 36"H x 29"W x 22 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln - EX-329SF, 208V, 1P, 36"H x 29"W x 22 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln - EX-329SF, 208V, 1P, 36"H x 29"W x 22 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln - EX-329SF, 240V, 1P, 36"H x 29"W x 22 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln - EX-329SF, 240V, 1P, 36"H x 29"W x 22 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-257SF, 208V, 1P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.

Excel 22" Deep Single Phase Kiln with EZ Lift - EX-257SF, 208V, 1P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-257SF, 240V, 1P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln with EZ Lift - EX-257SF, 240V, 1P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-257SF, 208V, 3P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Three Phase Kiln with EZ Lift - EX-257SF, 208V, 3P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-257SF, 240V, 3P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Three Phase Kiln with EZ Lift - EX-257SF, 240V, 3P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-353SF, 208V, 1P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.

Excel 22" Deep Single Phase Kiln with EZ Lift - EX-353SF, 208V, 1P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-353SF, 240V, 1P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln with EZ Lift - EX-353SF, 240V, 1P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-353SF, 208V, 3P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Three Phase Kiln with EZ Lift - EX-353SF, 208V, 3P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-353SF, 240V, 3P, 36"H x 35"W x 28 1/2"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Three Phase Kiln with EZ Lift - EX-353SF, 240V, 3P, 36"H x 35"W x 28 1/2"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-381SF, 208V, 1P, 36"H x 40 1/2"W x 34"D at Blick. Find everything you need for your next creative project online.

Excel 22" Deep Single Phase Kiln with EZ Lift - EX-381SF, 208V, 1P, 36"H x 40 1/2"W x 34"D | BLICK Art Materials

Shop Excel 22" Deep Single Phase Kiln with EZ Lift - EX-381SF, 240V, 1P, 36"H x 40 1/2"W x 34"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Single Phase Kiln with EZ Lift - EX-381SF, 240V, 1P, 36"H x 40 1/2"W x 34"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-381SF, 208V, 3P, 36"H x 40 1/2"W x 34"D at Blick. Find everything you need for your next creative project online.


Excel 22" Deep Three Phase Kiln with EZ Lift - EX-381SF, 208V, 3P, 36"H x 40 1/2"W x 34"D | BLICK Art Materials

Shop Excel 22" Deep Three Phase Kiln with EZ Lift - EX-381SF, 240V, 3P, 36"H x 40 1/2"W x 34"D at Blick. Find everything you need for your next creative project online.

EX-232SF Interior	22"D × 17½"Dia	56 cm × 44 cm
EX-329SF Interior	22"D × 16½"Dia	56 cm × 42 cm
EX-257SF Interior	22"D × 23½"Dia	56 cm × 60
EX-353SF Interior	22"D × 22½"Dia	56 cm × 57 cm
EX-381SF Interior	22"D × 28"Dia	56 cm × 71 cm

EX-232SF Exterior	36"H × 29"W × 22½"D	91 cm × 74 cm × 57 cm
EX-329SF Exterior	36"H × 29"W × 22½"D	91 cm × 74 cm × 57 cm
EX-257SF Exterior	36"H × 35"W × 28½"D	91 cm × 89 cm × 72
EX-353SF Exterior	36"H × 35"W × 28½"D	91 cm × 89 cm × 72
EX-381SF Exterior	36"H × 40½"W × 34"D	91 cm × 103 cm × 86
