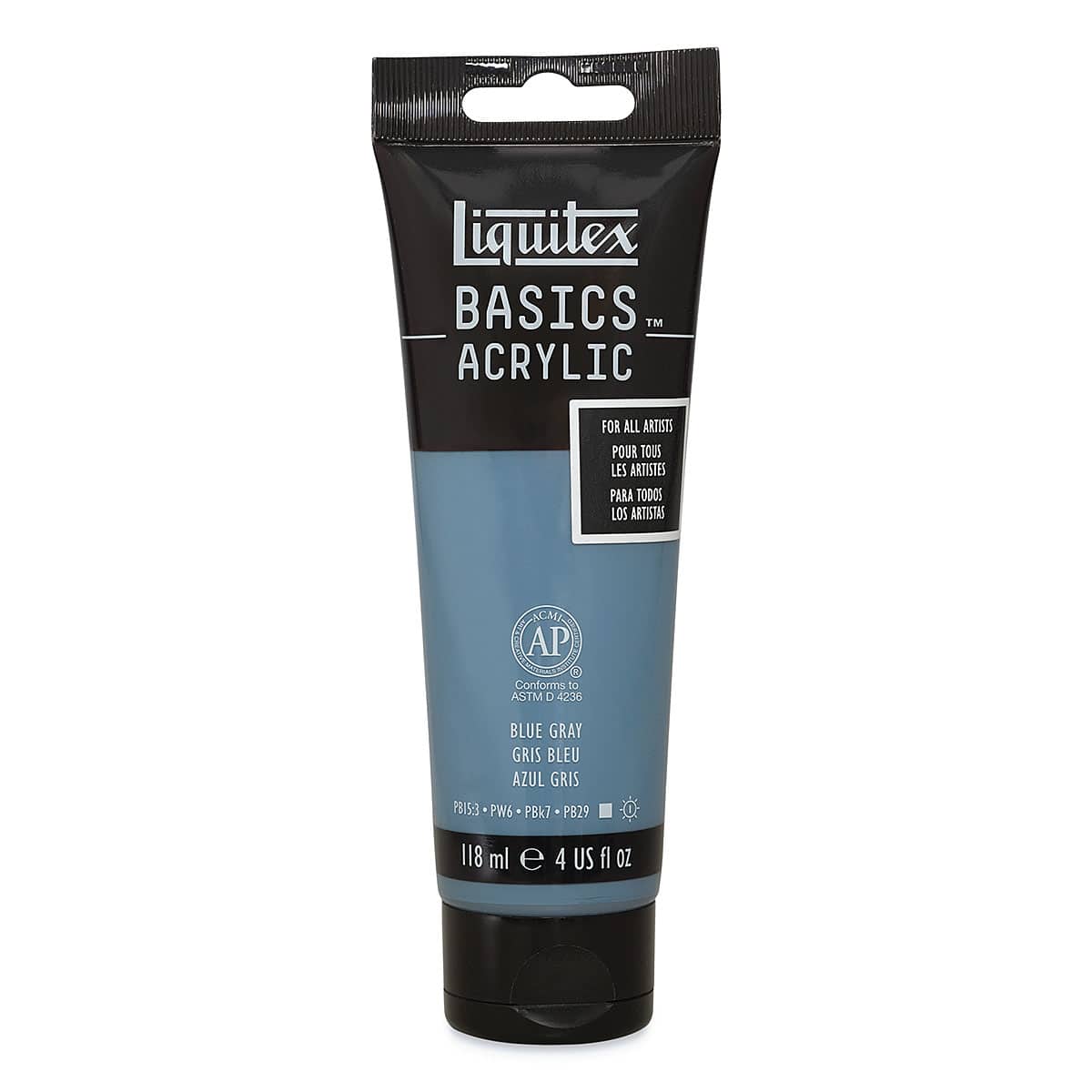

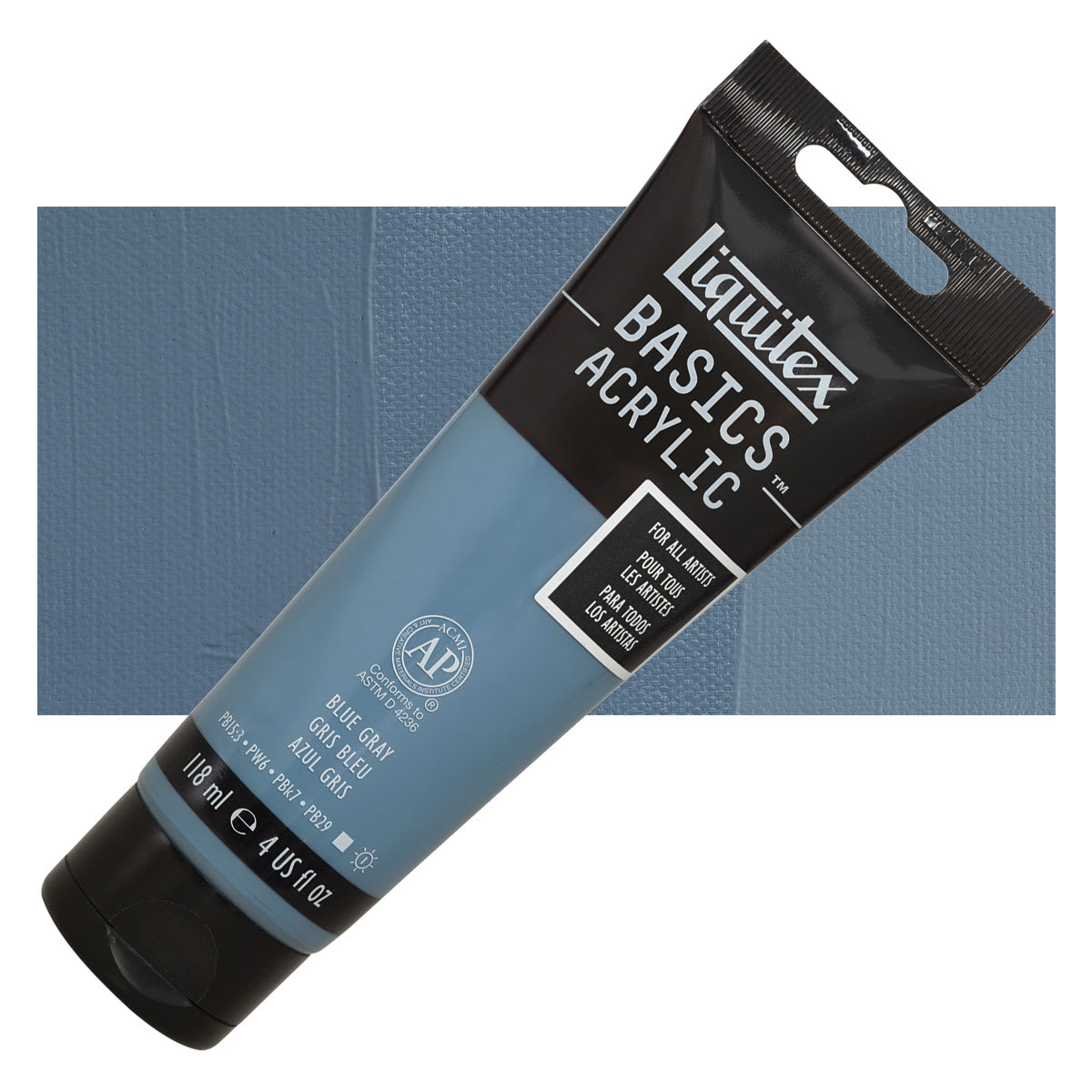

Liquitex Basics - Blue Gray, 4 oz tube

Pigment Information

This color contains the following pigments:

PBk7-Lamp Black

PW6-Titanium White

PB29-Ultramarine [Blue]

PB15:3-Phthalo Blue

Pigment Name

PBk7-Lamp Black

Pigment Type

inorganic

Chemical Name

carbon

Chemical Formula

C

Properties

Lamp black is a very opaque, heavily staining black pigment that does not have much covering or tinting power. It is typically the most opaque black in watercolor form. Though a very pure black, it tends to muddy slightly in mixtures. Natural sources may be brownish or bluish in tone because of impurities. When used in oil paints, it is one of the slowest drying pigments, and should not be used in underpainting or applied in layers underneath other colors.

Permanence

Lamp Black is very lightfast and absolutely permanent. It is used in all techniques in permanent painting.

Toxicity

<p>Carbon itself is not considered hazardous, however other combustion products that are hazardous are often present as impurities when Lamp Black is produced from natural materials. For this reason, commercial preparations of the pigment should be considered slightly toxic. Avoid skin contact and inhalation. Where such impurities are present, Lamp Black is a possible human carcinogen.</p>

History

Lamp Black is a carbon based black traditionally produced by collecting soot (known as lampblack) from oil lamps. It has been used as a pigment since prehistoric times. It is the black found in Egyptian murals and tomb decorations and was the most popular black for fresco painting until the development of Mars Black.

Pigment Name

PW6-Titanium White

Pigment Type

inorganic

Chemical Name

titanium dioxide

Chemical Formula

TiO2

Properties

Titanium White is the most brilliant of the white pigments. It is considered an all purpose oil color useful in all techniques and the best all around white. Its masstone is neither warm nor cool, placing it somewhere between Lead White and Zinc White. It is less prone to cracking and yellowing than Lead White, but it still yellows easily. Titanium White dries slowly in oil form, more slowly than Lead White but more quickly than Zinc White. It is opaque in oil and acrylic forms and semi-opaque in watercolor form. This pigment has good chemical stability, and its tinting strength is superior to both Lead White and Zinc White.

Permanence

Titanium White has excellent permanence and lightfastness.

Toxicity

Titanium dioxide is highly stable and is regarded as non-toxic.

History

Titanium is the ninth most abundant element in the Earth's crust, however mineral deposits that are economical to mine are less common. Titanium dioxide was first discovered in 1821, although it could not be mass produced until 1919. Widespread use of the pigment began in the 1940s. Since that time, it has become the most commonly used white pigment. The name comes from the Latin word Titan, the name for the elder brother of Kronos and ancestor of the Titans, and from the Greek word tito, meaning day or sun.

Pigment Name

PB29-Ultramarine [Blue]

Pigment Type

inorganic

Chemical Name

complex silicate of sodium and aluminum with sulfur

Chemical Formula

Na8-10Al6Si6O24S2-4 or Na6-8Al6Si6O24S2-4

Properties

Ultramarine is the standard warm blue, a brilliant blue pigment that has the most purple and least green in its undertone. It has a moderate to high tinting strength and a beautiful transparency. Synthetic Ultramarine is not as vivid a blue as natural Ultramarine. Ultramarine dries slowly in oil and tends to produce clean, though granular, washes in watercolor. French Ultramarine mixes well with Alizarin colors in oil and watercolor form to create a range of purples and violets. It can dull when mixed with white in acrylic form, but mixes well with other colors. The shade varies based on manufacturer. Considered a great color for glazes, it is not suitable for frescoing.

Permanence

Ultramarine has excellent permanence, although synthetic Ultramarine is not as permanent as natural Ultramarine. It may discolor if exposed to acid because of its sulfuric content.

Toxicity

Ultramarine has no significant hazards.

History

The name for this pigment comes from the Middle Latin ultra, meaning beyond, and mare, meaning sea, because it was imported from Asia to Europe by sea. It is a prominent component of lapis lazuli and was used on Asian temples starting in the 6th century. It was one of the most expensive pigments in 16th century Europe, worth twice its weight in gold, and so was used sparingly and when commissions were larger. Ultramarine is currently imitated by a process invented in France in 1826 by Jean Baptiste Guimet, making blue affordable to artists and extending the range of colors on their palettes.

Pigment Name

PB15:3-Phthalo Blue

Pigment Type

organic

Chemical Name

beta copper phthalocyanine

Chemical Formula

C32H16CuN8

Properties

Phthalo Blue PB15:3 is a structural variant of Phthalo Blue PB15 that produces more greenish tones.

Permanence

Phthalo Blues are completely lightfast and stable and are permanent for all paint uses. They are currently used in inks, coatings, and many plastics due to their stability and are considered a standard pigment in printing ink and the packaging industry.

Toxicity

Phthalo Blues have no significant hazards, although those made before 1982 contained some PCBs (polychlorinated biphenyls).

History

Developed by chemists using the trade name Monastral Blue, the organic blue dyestuff now known as Phthalo Blue was presented as a pigment in November 1935 in London. Its discovery was accidental. The dark color was observed in a kettle where a dye was being made from a British dyestuff plant. The demand for such a pigment came from commercial printers who wanted a cyan to replace Prussian Blue.
