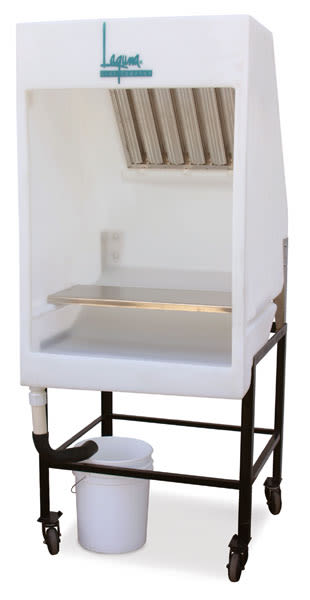

This uni-cast, modular polyethylene unit is an economical and environmentally sound choice when spraying paints or glazes. Because it has no seams, it's easy to clean. It is of quality construction and will not rust, corrode, or discolor.
It features a built-in filter bracket for holding either two styrofoam spray filters or two aluminum baffle filters. Filter styles are interchangable, cleanable, and reusable. Use of two filters of either style is required with the Pro-X. (The aluminum baffle filter has a longer use life before cleaning is required.) Overspray is funneled into your recovery tank, saving valuable material while protecting the environment.
The seamless spray booth's interior work area measures 34½" H × 27½" W × 30" D. The spray booth's optional interior stainless steel shelf measures 29" W × 12" D, and is approximately one inch thick.
Exterior dimensions (including the exhaust motor mount on the rear) are 47½" H × 30¾" W × 34" D, which means you can fit the booth through a standard doorway opening.

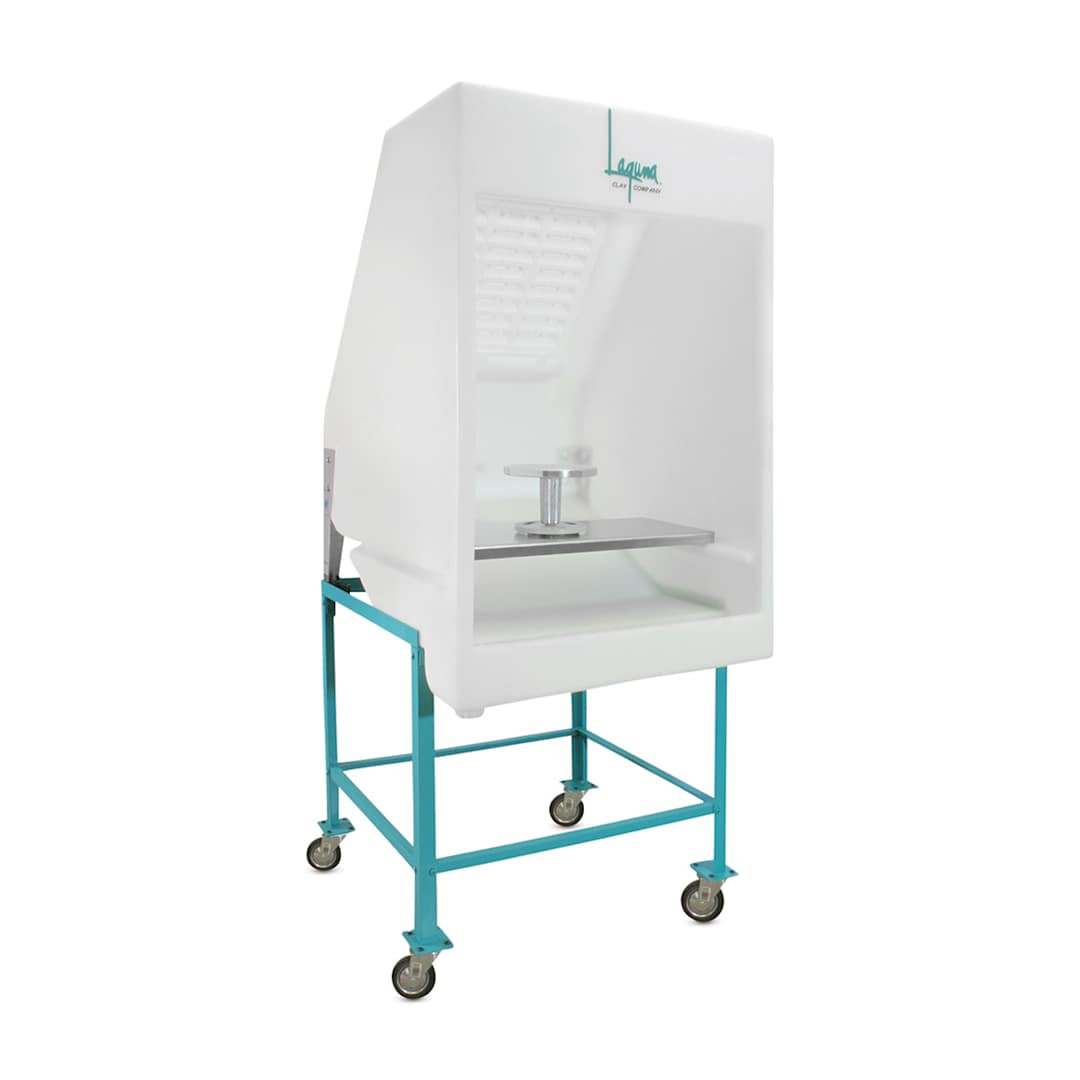

Set it on a tabletop, or on the optional stainless steel stand with casters. The stand measures 30" H × 31" W × 34¾" D. Shipping weight is 120 lbs.
1187 CFM Exhaust Fan — Requires an electrical supply of 120V, 10-11 A.
