Chartpak Pickett Architectural Templates

Great for general interior design planning and drafting, durable Chartpak Pickett Architectural Templates are 0.13" thick and made with partially recycled plastic materials. The flexible, translucent smoke-gray templates are made in the USA. Built-in risers and smooth apertures reduce smudged lines.

The template scale is 1/4" = 1 ft (unless noted).

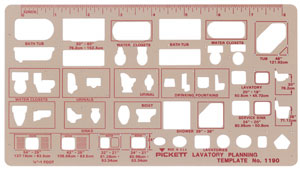

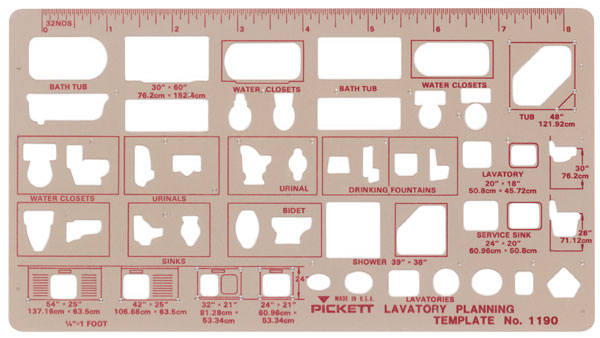

Duo Lavatory Planning, 1190i — The 5" × 9" template includes symbols used in planning and designing residential, institutional, and commercial lavatories. Dimensions are in inches and centimeters.

House Furnishings, 1155i — The 5-1/2" × 9-1/4" template includes standard home furnishings for interior design.

House Furniture Indicator, 111Pi — The 6" × 10" template contains standard furniture cutouts used for room planning and arrangements.

House Plan and Plumbing, 1150i — The 5" × 7" template includes house plan and plumbing fixtures.

House Plan Fixtures, 1151i — The 8" × 10" template includes architectural symbols used in designing kitchens and bathrooms.

Lavatory Planning, 1170i — The 6" × 9-3/4" template includes all common American Standard brand of lavatory fixtures. 1/8" and 1/4" = 1 ft scale.

Office Equipment Indicator, 113Pi — The 6" × 10" template includes standard furniture and door swings for office furniture arrangements.

Professional Builders (Residential) House Plan Fixtures 1/4, 1153i — The 12" × 8" template includes architectural symbols used in designing kitchens and bathrooms. 1/4" = 1 ft scale.

Professional Builders (Residential) House Plan Fixtures 1/8, 1152i — The 4" × 8" template includes architectural symbols used in designing kitchens and bathrooms. 1/8" = 1 ft scale.
