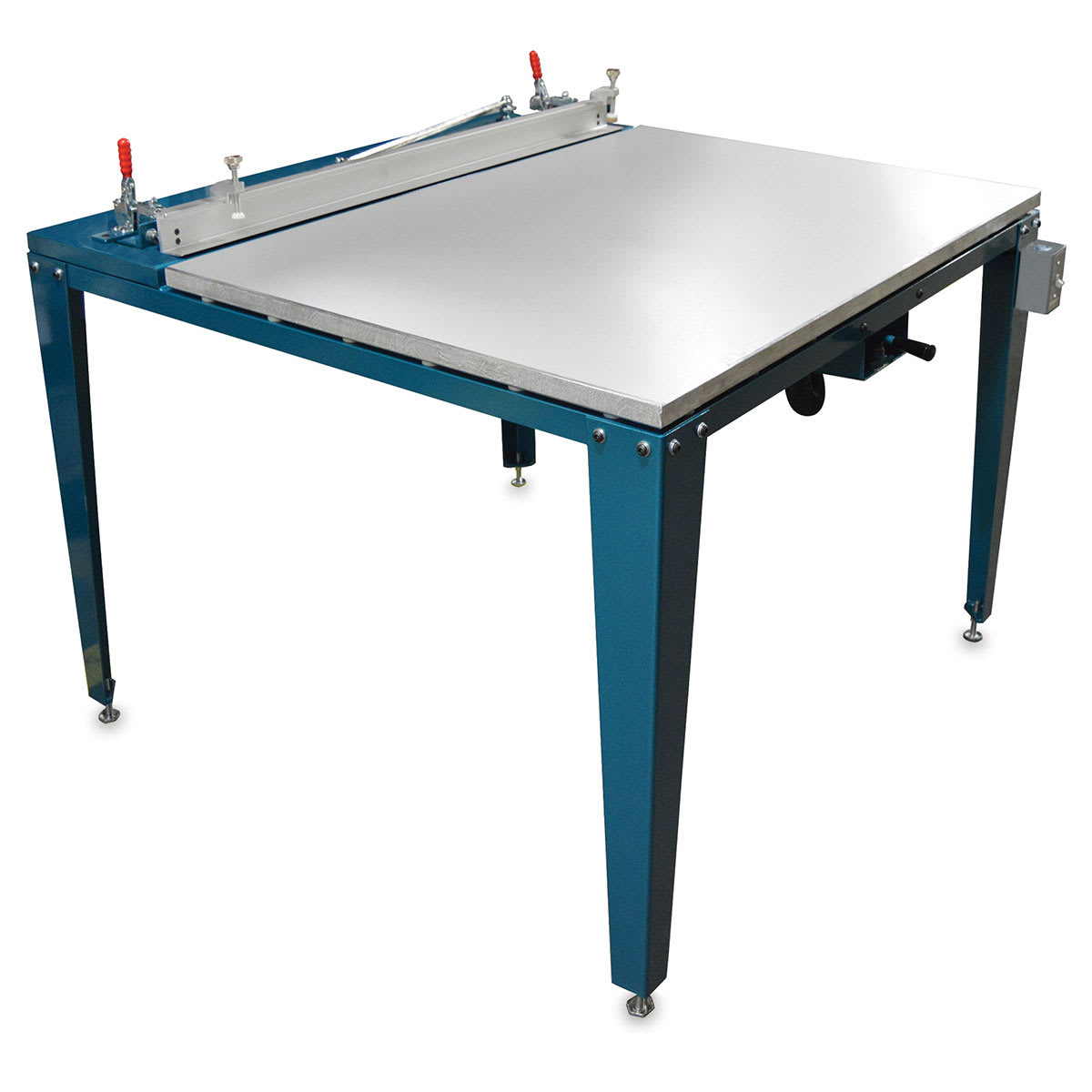

This is a single-person squeegee unit that offers a high quality yet affordable solution to screenprinting short runs, prototypes, and test runs. Aluminum Stay-Flat vacuum table with adjustable legs provides a flat, rust-proof, warp-proof printing surface.
The vacuum holddown is powered by a maintenance-free quiet, brushless, vacuum motor. Vacuum on/off is easily controlled by the up-front hand lever system. A Screen Frame Clamping Unit has micrometer control.
This unit features a heavy-duty screen lift with reversible sidekick and an ergonomically shaped all-aluminum contoured squeegee holder, which includes AWT's top-of-the-line Poly-Supreme Vulkollan squeegee blade.
Sizes listed indicate print area.
115V. 60 Hz.
| Item No. |
Print Area |
Table Size |
Weight |
| 43025-1015 |
15" × 25" (38 cm × 64 cm) |
23" × 35" (58 cm × 89 cm) |
350 lb (159 kg) |
| 43025-1013 |
24" × 30" (61 cm × 76 cm) |
32" × 40" (81 cm × 102 cm) |
450 lb (204 kg) |
| 43025-1025 |
25" × 38" (64 cm × 97 cm) |
33" × 48" (84 cm × 122 cm) |
550 lb (249 kg) |
- Truck shipment is required. The additional charge for a truck shipment varies, depending on distance, weight, and bulk. Our shipping department chooses the best carrier based on their own set rates, service level, and availability. Click on the icon for more details.
® AWT is a registered trademark. ™ Accu-Glide and Poly-Supreme are trademarks.
