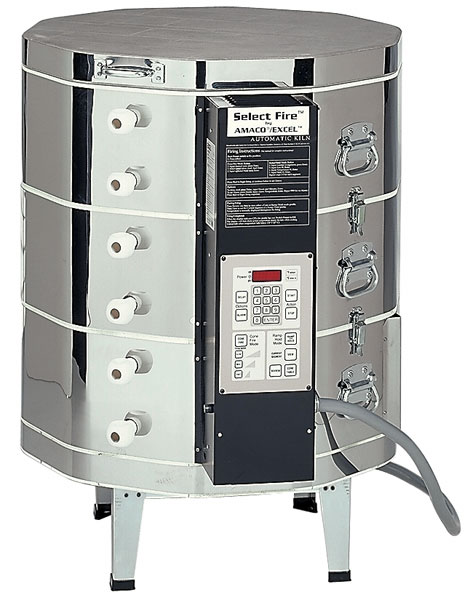

Model EX-1099SF Production Kiln
Amaco's Model EX-1099 is designed for production, with a giant 9.9 cubic feet of interior volume in a giant firing chamber that is 28" in diameter and 27" deep. A true Cone 10 kiln, it must be wired directly by an electrician with a high amperage circuit and heavy gauge wiring. Use only the full 1 inch shelves for Cone 10 firing. An EZ-Lift™ lid, as well as a Select Fire™ Controller, is included. External dimensions are 38"W × 33"D × 43"H, including the width of the control box and the height of the 8" steel stand that is included. The kiln weighs 290 lbs, and shipping weight is 410 lbs. 2 year warranty.
This model features 6.6 cubic feet of interior volume in a firing chamber that is 28" in diameter and 17¾" deep. These kilns fire to Cone 10. An EZ-Lift™ lid, as well as a Select Fire™ Controller, is included. External dimensions are 38"W × 33"D × 34"H. The kiln has a shipping weight of 330 lbs. 2 year warranty.
This Cone 6 kiln with a firing chamber that measures 23.375" in diameter and 27" deep has the volume to handle large batches of tile or stoneware. Amaco's Select Fire™ Controller, and an EZ-Lift™ lid can be ordered with the kiln, or added on later as an option. External dimensions are 35"W × 28½"D × 42¾"H, including the width of the control box and the height of the 8" steel stand that is included. The kiln weighs 187 lbs, and shipping weight is 214 lbs, or 290 lbs with EZ-Lift. 2 year warranty.
This Cone 10 kiln with a firing chamber that measures 22¾" in diameter and 27" deep has the volume to handle large batches of tile or stoneware. Amaco's Select Fire™ Controller is included, and an EZ-Lift™ lid can be ordered with the kiln, or added on later as an option. External dimensions are 35"W × 28½"D × 42¾"H, including the width of the control box and the height of the 8" steel stand that is included. The kiln weighs 215 lbs, and shipping weight is 242 lbs, or 320 lbs with EZ-Lift. 2 year warranty.
This model has a 9.92 cubic foot firing chamber that is 28" in diameter and 27" deep. The 240V single or three phase kiln fires to Cone 8. The 208V three phase kiln fires to Cone 8, while the single phase 208V kiln fires to Cone 5. External dimensions are 38"W × 33"D × 43"H. This model has a shipping weight of 400 lbs. 2 year warranty.
Electrical Warning — All electrical products have U.S. standard plugs and voltage. Due to damage that can occur when using incompatible plugs, sockets, or converters, Blick does not ship electrical items or accessories outside of North America or to freight forwarders.
Kiln Return Policy— Kilns are custom-built to order and are shipped directly by the manufacturer; therefore, Blick is unable to accept returns. Please review all information and contact our customer service department to address any questions prior to ordering.
Three Phase Kilns — Three Phase electric power is available in many industrial and institutional buildings, usually with 208V power. Most facilities with Three Phase power also have separate circuits for Single Phase power. Single Phase electric power is the standard alternating current (60 hz) that is available in all homes and offices in North America, usually with 240V power. A single phase kiln can run using Three Phase power with additional equipment and wiring. Where Three Phase power is available, most high amperage circuits (that might be used to run a kiln) will be Three Phase circuits. Although electric motors such as ventilation fans run more efficiently (require fewer watts) on a Three Phase circuit, kiln heating elements do not. However, it is possible to run a Three Phase kiln using a smaller (lower amperage) circuit than would be required for a comparable Single Phase kiln, if power capacity (amperage) is an issue. Three Phase kilns will not run on Single Phase power. Always consult a licensed electrician before installing a high power electric kiln.
For Warranty Registration and Manufacturer's Rebate , please click here.
see also ...
® Amaco is a registered trademark of American Art Clay Company.® Excel and Select Fire are trademarks.
Truck Shipment Required
Select Fire™, the most advanced kiln control system ever, is now available built-in with Amaco's Excel Kilns. Whether you are an advanced artist, production potter, or hobbyist, the Select Fire system means more precise control, greater consistency, and less time spent monitoring firings.
Set the kiln to fire by temperature or by cone number (it automatically converts one to the other) at one of three pre-set firing programs — slow, medium, or fast. Use ramp/hold programming to create your own firing profile by selecting up to six segments of temperature change, and hold and store it for your next firing.
A digital readout displays Fahrenheit, centigrade and program currently in use. Automatic delay firing will start up to 99 hours, 99 minutes later. Thermocouple, type K included.
Selecting the right kiln for your needs can simplify your ceramic studio or classroom and facilitate successful use for many years to come. This video shows the variety of Amaco Excel kilns available and explains some of the key features so that you can make the perfect decision for your environment.
Visit our YouTube Channel: Blick Videos to watch our full selection of videos!
Sorry, this item cannot be purchased on our web site at this time.
Please contact us at (800) 828-4548 if you have further questions on this product.
Please allow ADDITIONAL DELIVERY TIME for factory-shipped items.
Click here to view expected shipping dates, or call our Order Dept (800)-828-4548.
