Great for general interior design planning and drafting, durable Chartpak Pickett Architectural Templates are 0.13" thick and made with partially recycled plastic materials. Built-in risers and smooth apertures reduce smudged lines. The template scale is 1/4" = 1 ft (unless noted).

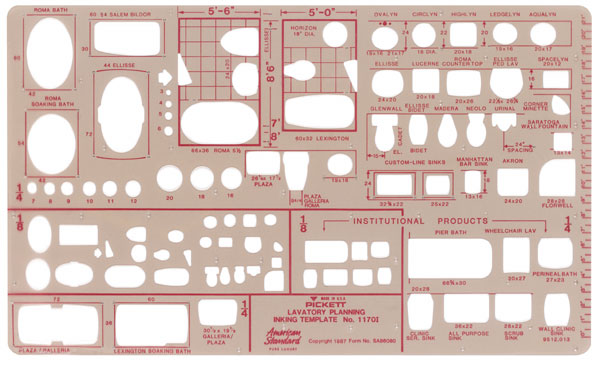

Lavatory Planning, 1170i —

The 6" × 9-3/4" template includes all common American Standard brand of lavatory fixtures. 1/8" and 1/4" = 1 ft scale.

Lavatory Planning Template
